Home Products > Brushless DC motors > Brushless DC Slotted motors > 57BL -BLA

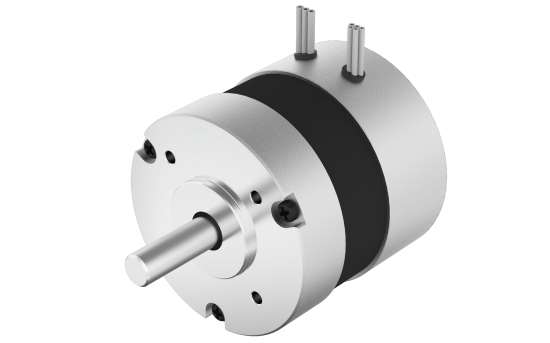

57BL -BLA

One of the benefits of DC brushless motors with internal rotor, lies in their better dissipation of the generated heat. Thanks to the reduced air gap in brushless DC slotted motors, the flux density is higher and torque production is more effective and efficient.

Products

Product finder

Technology:

Category:

More Filters

Product name

n° of Pole

Size (mm)

Length (L) (mm)

Rated Voltage (Vdc)

Rated Torque (Nm)

Rated Speed (rpm)


57BL45	4	57	43.6	36	0.055	4000
57BL54	4	57	53.6	36	0.11	4000
57BLA01	6	57	53.6	36	0.2	4000
57BL74	4	57	73.6	36	0.22	4000
57BLA02	6	57	73.6	36	0.4	4000
57BL94	4	57	93.6	36	0.33	4000
57BLA03	6	57	93.6	36	0.6	4000
57BL116	4	57	113.6	36	0.44	4000
57BLA04	6	57	113.6	36	0.8	4000
