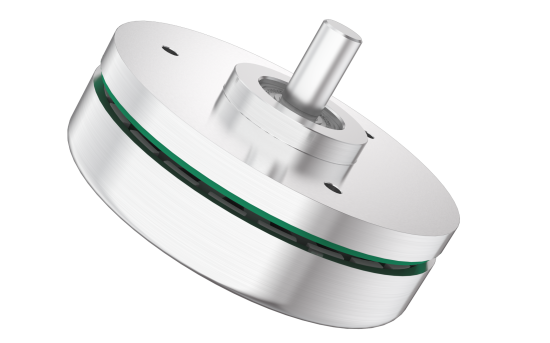

Brushless DC Flat motorsThe specific external rotor design of flat brushless DC motors gives these products an exceptional power to volume ratio, while keeping them very light and compact. Thanks to a high number of poles, these flat high torque DC motors offer very good control also at low speed. Our flat BLDC motor range offers a wide variety of sizes with reduced length. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
20BLW
BLDC Flat motors
| Size (mm) | 20 |
| Length (L) (mm) | 14 |
| Rated Voltage (Vdc) | 12 - 24 |
| Rated Torque (Nm) | 0,0075 - 0,0077 |
| Rated Speed (rpm) | 5170 - 5220 |
32BLW
BLDC Flat motors
| Size (mm) | 32 |
| Length (L) (mm) | 17,9 |
| Rated Voltage (Vdc) | 9 -48 |
| Rated Torque (Nm) | 0,025 - 0,026 |
| Rated Speed (rpm) | 2100 - 2950 |
45BLW - flat cable
BLDC Flat motors
| Size (mm) | 45 |
| Length (L) (mm) | 16 |
| Rated Voltage (Vdc) | 12 |
| Rated Torque (Nm) | 0,055 |
| Rated Speed (rpm) | 2910 |
45BLW - connector
BLDC Flat motors
| Size (mm) | 45 |
| Length (L) (mm) | 18 - 27 |
| Rated Voltage (Vdc) | 24 |
| Rated Torque (Nm) | 0,05 - 0,13 |
| Rated Speed (rpm) | 4840 - 5260 |
45BLW - wires
BLDC Flat motors
| Size (mm) | 45 |
| Length (L) (mm) | 18 - 27 |
| Rated Voltage (Vdc) | 24 |
| Rated Torque (Nm) | 0,05 - 0,13 |
| Rated Speed (rpm) | 4840 - 5260 |
60BLW
BLDC Flat motors
| Size (mm) | 60 |
| Length (L) (mm) | 38 - 42 |
| Rated Voltage (Vdc) | 24 - 48 |
| Rated Torque (Nm) | 0,3 - 0,5 |
| Rated Speed (rpm) | 3400 - 3700 |
90BLW
BLDC Flat motors
| Size (mm) | 90 |
| Length (L) (mm) | 27 - 40 |
| Rated Voltage (Vdc) | 24 -60 |
| Rated Torque (Nm) | 0,457 - 0,964 |
| Rated Speed (rpm) | 1610 - 2720 |
|
