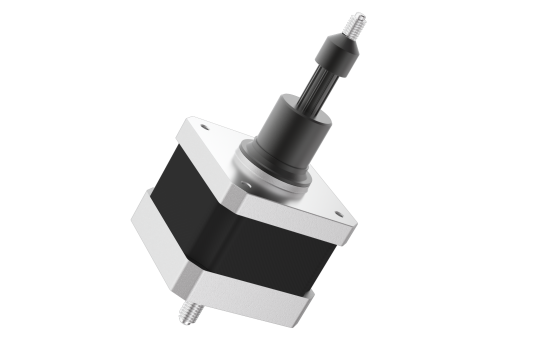

Captive hybrid stepper linear actuatorsOur Captive Stepper motor Actuators feature a precision lead screw, nut and a spline shaft to produce accurate and repeatable linear motion. Actuators are manufactured in NEMA sizes 8, 11, 14, 17 and 23. These captive stepper motor actuators operate with a precision lead screw and spline shaft that translates through the motor housing. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
20C
Captive Linear Actuators
| Size (mm) | 20 |
| Nema | 08 |
| Current/Phase (A) | 0,5 |
| Thrust ref (N) | 5 - 114 |
| Travel per Step (mm) | 0,003 - 0,04 |
28C
Captive Linear Actuators
| Size (mm) | 28 |
| Nema | 11 |
| Current/Phase (A) | 1 |
| Thrust ref (N) | 16 - 335 |
| Travel per Step (mm) | 0,0031 - 0,0508 |
35C
Captive Linear Actuators
| Size (mm) | 35 |
| Nema | 14 |
| Current/Phase (A) | 1.5 |
| Thrust ref (N) | 12 - 360 |
| Travel per Step (mm) | 0,00635 - 0,127 |
42C
Captive Linear Actuators
| Size (mm) | 42 |
| Nema | 17 |
| Current/Phase (A) | 1.5 - 2.5 |
| Thrust ref (N) | 20 - 585 |
| Travel per Step (mm) | 0,00635 - 0,127 |
57C
Captive Linear Actuators
| Size (mm) | 57 |
| Nema | 23 |
| Current/Phase (A) | 3 - 4 |
| Thrust ref (N) | 60 - 1880 |
| Travel per Step (mm) | 0,00635 - 0,127 |
|
