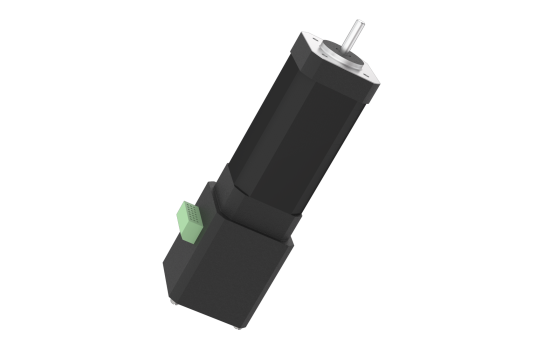

Brushless DC motors with Speed controllerThe compact integration of the electronic speed controller into brushless DC motors, facilitates speed control by means of a PI controller. The direction of rotation in these BLDC speed control motors can be changed via a separate switching input. Our brushless DC motors with speed controller range offers diameters from 36 to 57mm and rated torque up to 0.3Nm. |
 |
.
More Filters
Products
Product finder
| Technology: |
| Category: |
36CBL -IE
BLDC with Speed controller
| Size (mm) | 36 |
| Length (L) (mm) | 30 - 60 |
| Rated Torque (Nm) | 0,016 - 0,08 |
| Rated Current (A) | 0,47 - 2,11 |
| Rated Voltage (Vdc) | 24 |
42BL -IE
BLDC with Speed controller
| Size (mm) | 42 |
| Length (L) (mm) | 87 - 146 |
| Rated Torque (Nm) | 0,0625 - 0,25 |
| Rated Current (A) | 1,79 - 6,94 |
| Rated Voltage (Vdc) | 24 |
42CBL -IE
BLDC with Speed controller
| Size (mm) | 42 |
| Length (L) (mm) | 60 |
| Rated Torque (Nm) | 0,068 |
| Rated Current (A) | 2,13 |
| Rated Voltage (Vdc) | 24 |
42RBL -IE
BLDC with Speed controller
| Size (mm) | 42 |
| Length (L) (mm) | 92 |
| Rated Torque (Nm) | 0,08 |
| Rated Current (A) | 2,11 |
| Rated Voltage (Vdc) | 24 |
57BL -IE
BLDC with Speed controller
| Size (mm) | 57 |
| Length (L) (mm) | 102 - 133,5 |
| Rated Torque (Nm) | 0,11 - 0,33 |
| Rated Current (A) | 1,80 - 5,08 |
| Rated Voltage (Vdc) | 36 |
|
