42C


42C

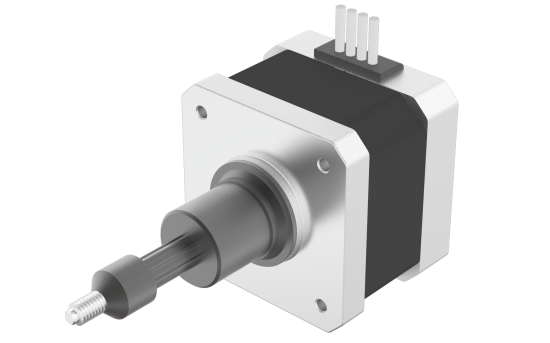

Our Captive Stepper motor Actuators feature a precision lead screw, nut and a spline shaft to produce accurate and repeatable linear motion. Actuators are manufactured in NEMA sizes 8, 11, 14, 17 and 23. These captive stepper motor actuators operate with a precision lead screw and spline shaft that translates through the motor housing.



42C
.

Products
Product finder
Technology:
Category:
More Filters

Product name
Size (mm)
Nema
Length (L) (mm)
Current/Phase (A)
Thrust ref (N)
Travel per Step (mm)
Stroke Length
42C34-15-CA 42 17 34 1.5 445 0.00635 12.7 to 63.5mm (see datasheet)
42C34-15-CB 42 17 34 1.5 245 0.0127 12.7 to 63.5mm (see datasheet)
42C34-15-CC 42 17 34 1.5 110 0.03175 12.7 to 63.5mm (see datasheet)
42C34-15-CD 42 17 34 1.5 45 0.0635 12.7 to 63.5mm (see datasheet)
42C34-15-CE 42 17 34 1.5 20 0.127 12.7 to 63.5mm (see datasheet)
42C40-15-CA 42 17 40 1.5 575 0.00635 12.7 to 63.5mm (see datasheet)
42C40-15-CB 42 17 40 1.5 318 0.0127 12.7 to 63.5mm (see datasheet)
42C40-15-CC 42 17 40 1.5 150 0.03175 12.7 to 63.5mm (see datasheet)
42C40-15-CD 42 17 40 1.5 50 0.0635 12.7 to 63.5mm (see datasheet)
42C40-15-CE 42 17 40 1.5 25 0.127 12.7 to 63.5mm (see datasheet)
42C48-25-CA 42 17 48 2.5 0.00635 12.7 to 63.5mm (see datasheet)
42C48-25-CB 42 17 48 2.5 460 0.0127 12.7 to 63.5mm (see datasheet)
42C48-25-CC 42 17 48 2.5 265 0.03175 12.7 to 63.5mm (see datasheet)
42C48-25-CD 42 17 48 2.5 125 0.0635 12.7 to 63.5mm (see datasheet)
42C48-25-CE 42 17 48 2.5 50 0.127 12.7 to 63.5mm (see datasheet)
42C60-25-CA 42 17 60 2.5 0.00635 12.7 to 63.5mm (see datasheet)
42C60-25-CB 42 17 60 2.5 585 0.0127 12.7 to 63.5mm (see datasheet)
42C60-25-CC 42 17 60 2.5 340 0.03175 12.7 to 63.5mm (see datasheet)
42C60-25-CD 42 17 60 2.5 160 0.0635 12.7 to 63.5mm (see datasheet)
42C60-25-CE 42 17 60 2.5 75 0.127 12.7 to 63.5mm (see datasheet)
