Home Products > Stepper Linear Actuators > Captive hybrid stepper linear actuators > 42C

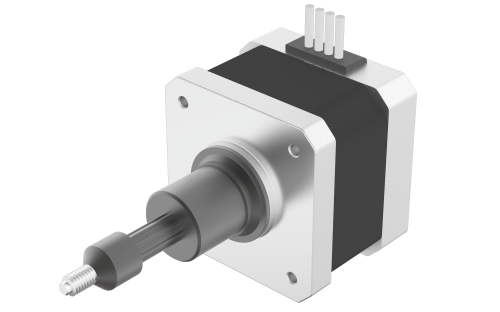

42C48-25-CB

Size 42 mm | Nema 17 | Length (L) 48 mm | Current/Phase 2.5 A | Thrust ref 460 N | Travel per Step 0.0127 mm

Product Code: 42C48-25-CB

Technical Data

Download

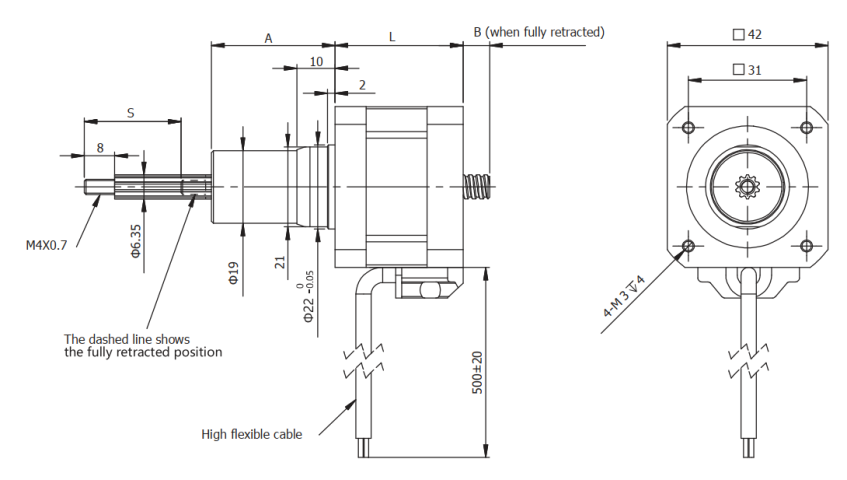

Dimensions

Size	42 mm	Nema	17
Length (L)	48 mm	Current/Phase	2.5 A
Rated Voltage	2 Vdc	Resistance/Phase	0.8 Ohm
Inductance/Phase	1.8 mH	N° of Leads	4
Rotor Inertia	70 gcm²	Weight	385 g
Thrust ref	460 N	Screw Diameter	6.35 mm
Screw Lead	2.54 mm	Travel per Step	0.0127 mm
Stroke Length	12.7 to 63.5mm (see datasheet)	Wiring	Bipolar
Step Angle	1.8 °	Insulation Class	B
Protection class	IP20	Operating Temperature	-20°C +50°C
Temperature Rise	max. 80 °C	Dielectric strength (for 1 sec.)	500 VAC
