57C

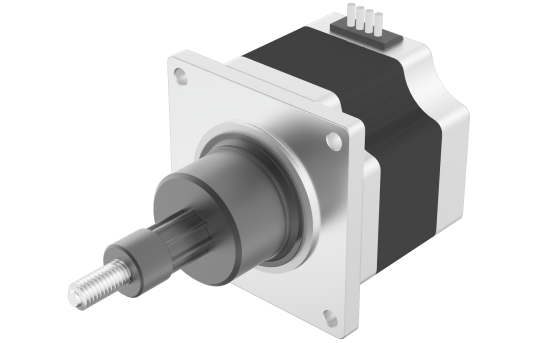

Our Captive Stepper motor Actuators feature a precision lead screw, nut and a spline shaft to produce accurate and repeatable linear motion. Actuators are manufactured in NEMA sizes 8, 11, 14, 17 and 23. These captive stepper motor actuators operate with a precision lead screw and spline shaft that translates through the motor housing.



 57C
.

Products
Product finder
Technology:
Category:
More Filters

Product name
Size (mm)
Nema
Length (L) (mm)
Current/Phase (A)
Thrust ref (N)
Travel per Step (mm)
Stroke Length
57C45-30-DA 57 23 45 3 1000 0.00635 12.7 to 63.5mm (see datasheet)
57C45-30-DB 57 23 45 3 680 0.0127 12.7 to 63.5mm (see datasheet)
57C45-30-DC 57 23 45 3 420 0.0254 12.7 to 63.5mm (see datasheet)
57C45-30-DD 57 23 45 3 200 0.0508 12.7 to 63.5mm (see datasheet)
57C45-30-DE 57 23 45 3 60 0.127 12.7 to 63.5mm (see datasheet)
57C55-30-DA 57 23 55 3 1250 0.00635 12.7 to 63.5mm (see datasheet)
57C55-30-DB 57 23 55 3 850 0.0127 12.7 to 63.5mm (see datasheet)
57C55-30-DC 57 23 55 3 540 0.0254 12.7 to 63.5mm (see datasheet)
57C55-30-DD 57 23 55 3 250 0.0508 12.7 to 63.5mm (see datasheet)
57C55-30-DE 57 23 55 3 70 0.127 12.7 to 63.5mm (see datasheet)
57C65-40-DA 57 23 65 4 1500 0.00635 12.7 to 63.5mm (see datasheet)
57C65-40-DB 57 23 65 4 920 0.0127 12.7 to 63.5mm (see datasheet)
57C65-40-DC 57 23 65 4 550 0.0254 12.7 to 63.5mm (see datasheet)
57C65-40-DD 57 23 65 4 385 0.0508 12.7 to 63.5mm (see datasheet)
57C65-40-DE 57 23 65 4 215 0.127 12.7 to 63.5mm (see datasheet)
57C75-40-DA 57 23 75 4 1880 0.00635 12.7 to 63.5mm (see datasheet)
57C75-40-DB 57 23 75 4 1150 0.0127 12.7 to 63.5mm (see datasheet)
57C75-40-DC 57 23 75 4 680 0.0254 12.7 to 63.5mm (see datasheet)
57C75-40-DD 57 23 75 4 480 0.0508 12.7 to 63.5mm (see datasheet)
57C75-40-DE 57 23 75 4 270 0.127 12.7 to 63.5mm (see datasheet)
