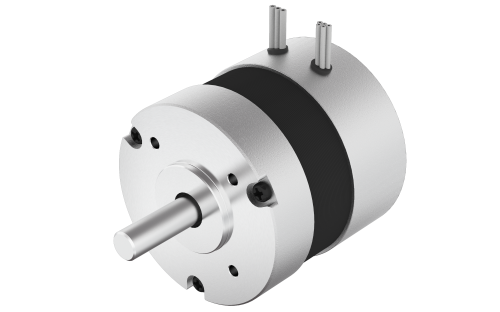

57BL45

n° of Pole 4 | Size 57 mm | Length (L) 43.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.055 Nm | Rated Speed 4000 rpm

Product Code: 57BL45.000

Technical Data

Download

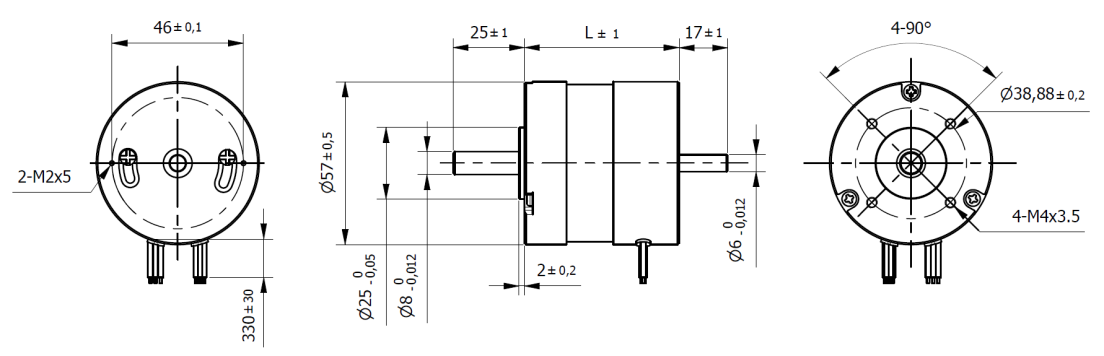

Dimensions

n° of Pole	4	Series	BL
Size	57 mm	Length (L)	43.6 mm
Weight	0.33 Kg	Rated Voltage	36 Vdc
Rated Torque	0.055 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.16 Nm
Torque Constant	0.052 Nm/A	Rated Current	1.06 A
Max. Peak Current	3.5 A	No-Load Current	240 mA
Line to Line Resistance	4.1 Ohm	Line to Line Inductance	10 mH
Rotor Inertia	30 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (10mm from flange)	15 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
