Home Products > Brushless DC motors > Brushless DC Slotted motors > 57BL -BLA

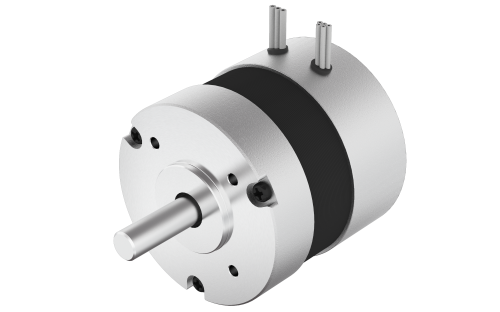

57BLA01

n° of Pole 6 | Size 57 mm | Length (L) 53.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.2 Nm | Rated Speed 4000 rpm

Product Code: 57BLA01.000

Technical Data

Download

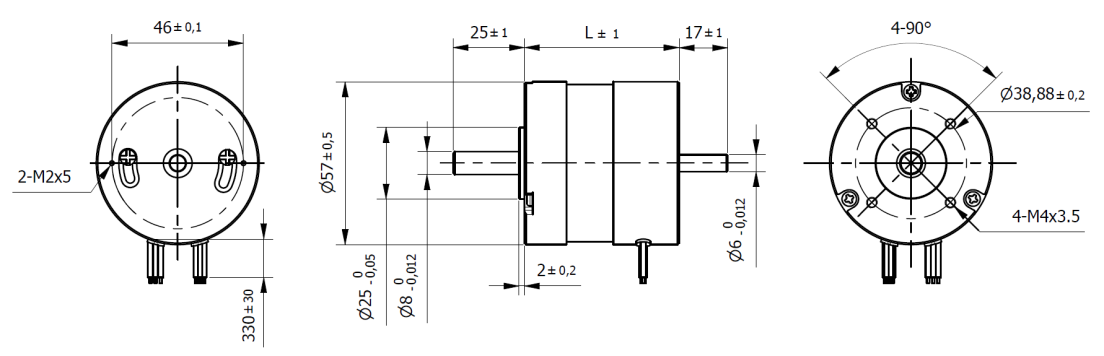

Dimensions

n° of Pole	6	Series	BL
Size	57 mm	Length (L)	53.6 mm
Weight	0.52 Kg	Rated Voltage	36 Vdc
Rated Torque	0.2 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.6 Nm
Torque Constant	0.07 Nm/A	Rated Current	2.86 A
Max. Peak Current	8.6 A	No-Load Current	350 mA
Line to Line Resistance	0.95 Ohm	Line to Line Inductance	1.2 mH
Rotor Inertia	275 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
