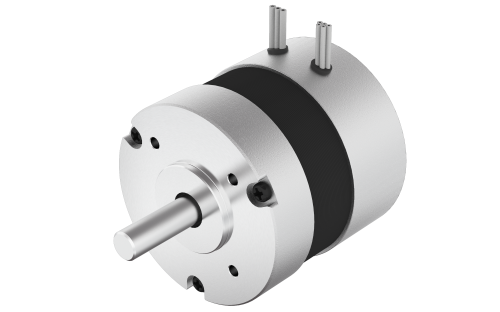

57BL74

n° of Pole 4 | Size 57 mm | Length (L) 73.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.22 Nm | Rated Speed 4000 rpm

Product Code: 57BL74.000

Buy online:

Technical Data

Download

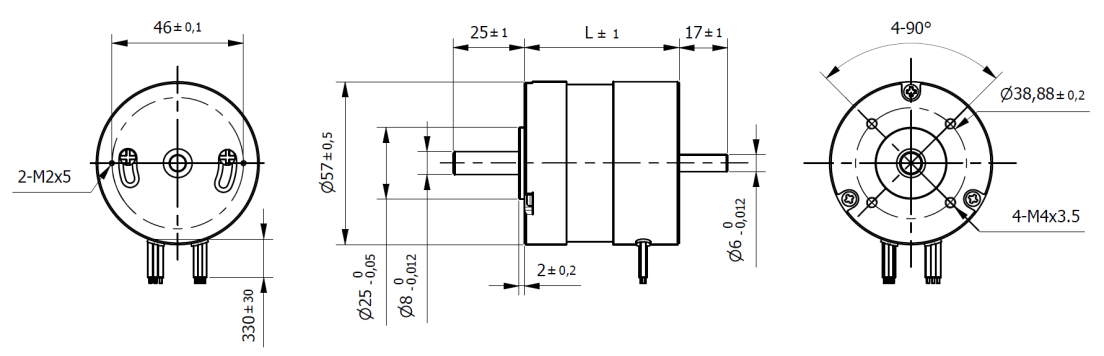

Dimensions

n° of Pole	4	Series	BL
Size	57 mm	Length (L)	73.6 mm
Weight	0.72 Kg	Rated Voltage	36 Vdc
Rated Torque	0.22 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	0.7 Nm
Torque Constant	0.06 Nm/A	Rated Current	3.67 A
Max. Peak Current	12 A	No-Load Current	400 mA
Line to Line Resistance	0.58 Ohm	Line to Line Inductance	2 mH
Rotor Inertia	119 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (10mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
