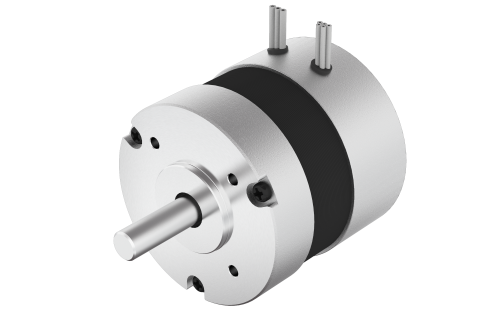

57BL116

n° of Pole 4 | Size 57 mm | Length (L) 113.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.44 Nm | Rated Speed 4000 rpm

Product Code: 57BL116.000

Buy online:

Technical Data

Download

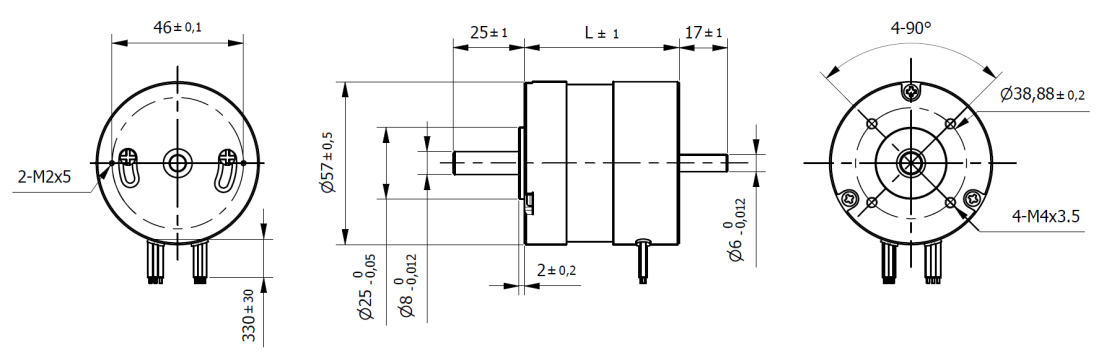

Dimensions

n° of Pole	4	Series	BL
Size	57 mm	Length (L)	113.6 mm
Weight	1.2 Kg	Rated Voltage	36 Vdc
Rated Torque	0.44 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	1.27 Nm
Torque Constant	0.062 Nm/A	Rated Current	7.10 A
Max. Peak Current	21 A	No-Load Current	540 mA
Line to Line Resistance	0.35 Ohm	Line to Line Inductance	0.95 mH
Rotor Inertia	230 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (10mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
