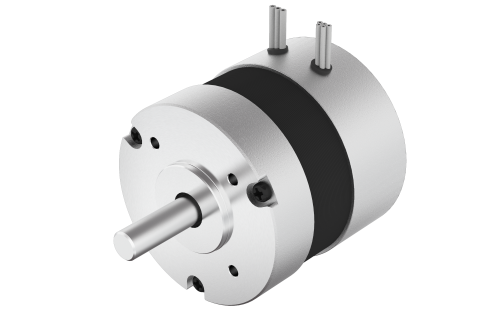

57BLA02

n° of Pole 6 | Size 57 mm | Length (L) 73.6 mm | Rated Voltage 36 Vdc | Rated Torque 0.4 Nm | Rated Speed 4000 rpm

Product Code: 57BLA02.000

Technical Data

Download

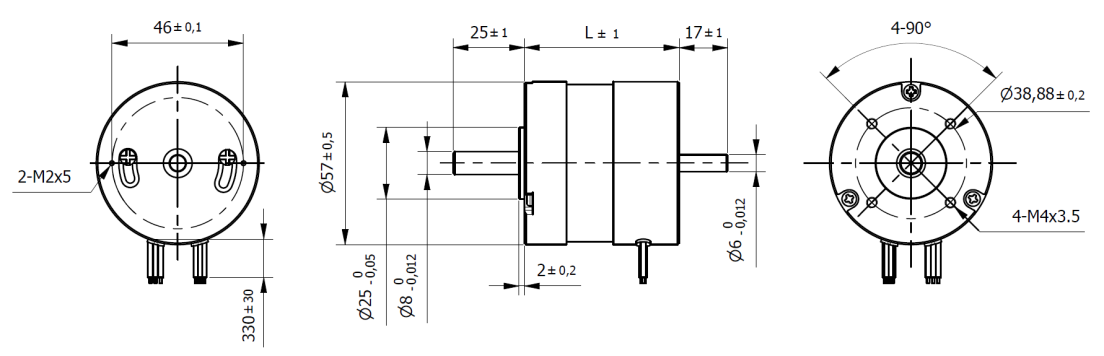

Dimensions

n° of Pole	6	Series	BL
Size	57 mm	Length (L)	73.6 mm
Weight	0.75 Kg	Rated Voltage	36 Vdc
Rated Torque	0.4 Nm	Rated Speed	4000 rpm
n° of Phase	3	Max. Peak Torque	1.2 Nm
Torque Constant	0.07 Nm/A	Rated Current	5.71 A
Max. Peak Current	16 A	No-Load Current	400 mA
Line to Line Resistance	0.4 Ohm	Line to Line Inductance	0.55 mH
Rotor Inertia	375 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
