Home Products > Stepper motors > Hybrid Stepper motors > 25SH

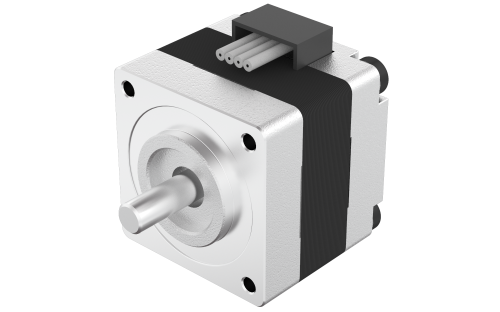

25SH23-0704A

Series SH | Size 25 mm | Nema 10 | Length (L) 24 mm | Current/Phase 0.7 A | Holding Torque 0.033 Nm | Step Angle 1.8 °

Product Code: 25SH23-0704A.000

Technical Data

Download

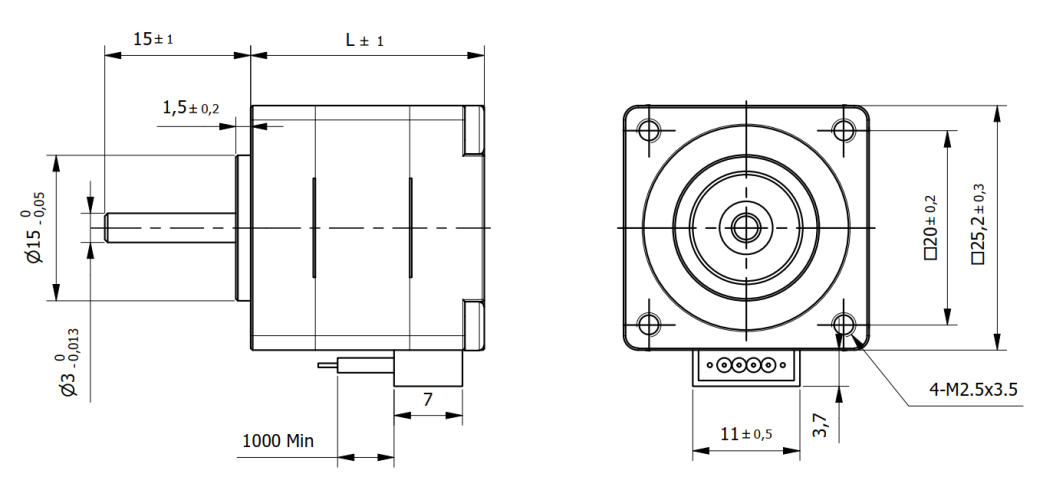

Dimensions

Series	SH	Size	25 mm
Nema	10	Length (L)	24 mm
Current/Phase	0.7 A	Holding Torque	0.033 Nm
Step Angle	1.8 °	Rated Voltage	3 Vdc
Resistance/Phase	4.3 Ohm	Inductance/Phase	2.4 mH
Rotor Inertia	2 gcm²	Detent Torque	0.003 Nm
N° of Leads	4	Weight	0.055 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-25°C +40°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (10mm from flange)	28 N
Max. Axial Force	10 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
