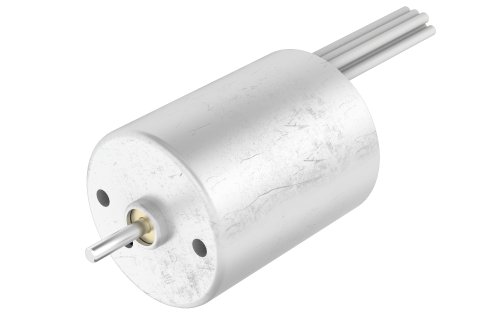

24CBL30

Series CBL | Size 24 mm | Length (L) 30 mm | Rated Voltage 12 Vdc | Rated Torque 0.006 Nm | Rated Speed 4000 rpm

Product Code: 24CBL30.000

Technical Data

Download

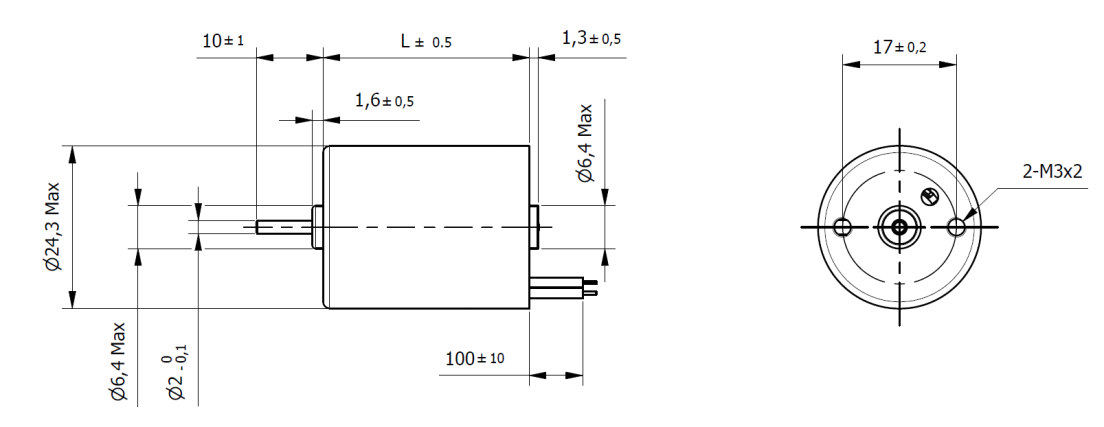

Dimensions

Series	CBL	Size	24 mm
Length (L)	30 mm	Weight	0.1 Kg
Rated Voltage	12 Vdc	Rated Torque	0.006 Nm
Rated Speed	4000 rpm	n° of Pole	6
n° of Phase	3	Max. Peak Torque	0.017 Nm
Torque Constant	0.02 Nm/A	Rated Current	0.3 A
Max. Peak Current	0.9 A	No-Load Current	190 mA
Line to Line Resistance	7.3 Ohm	Line to Line Inductance	1.7 mH
Rotor Inertia	2.3 gcm²	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.06 mm	Max. Radial Force (10mm from flange)	4 N
Max. Axial Force	4 N	Dielectric strength (for 1 sec.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
