Home Products > Gearboxes > Planetary gearboxes > GP80 -T - Torque

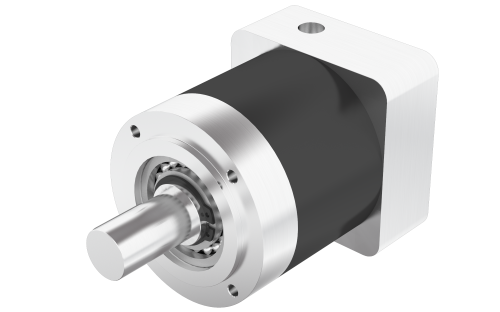

GP80-T2-20.4

Product Code: GP80-T2-20.44.000

Technical Data

Download

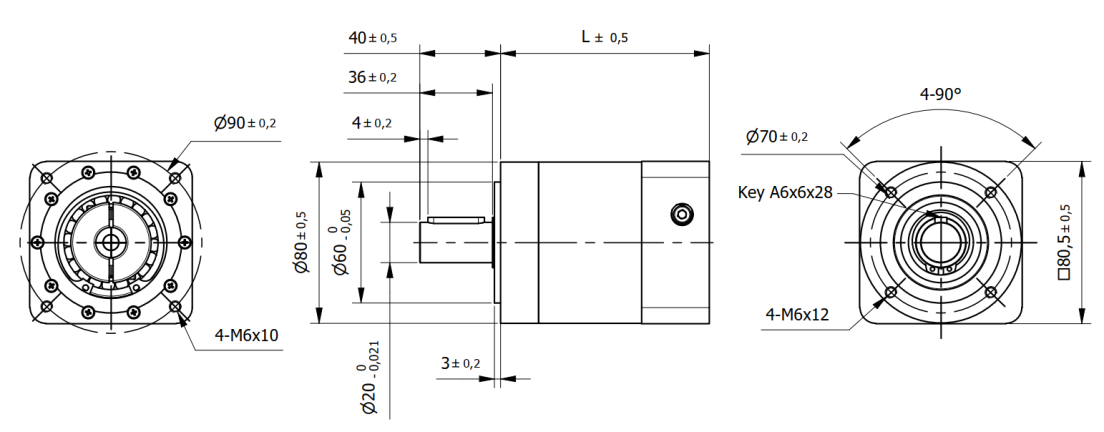

Dimensions

Series	GP	Size	80 mm
Length (L)	129 mm	Stages	2
Reduction Ratio	20.444	Nominal Output Torque	57 Nm
Max. Input Speed	4342 rpm	Recommended Input Speed	3000 rpm
Max. Output Torque	114 Nm	Efficiency	85 %
Moment of Inertia	(≤φ15) 83.39 kgmm²	Weight	2600 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	1500 N
Noise level	≤60 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
