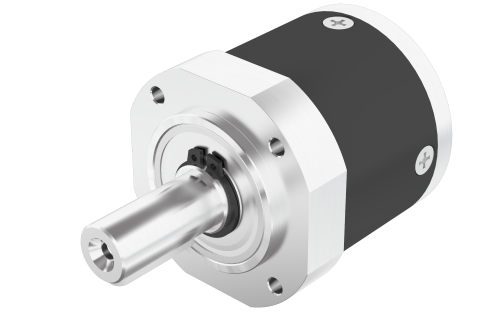

GP56-T3-100

Product Code: GP56-T3-101.23.000

Technical Data

Download

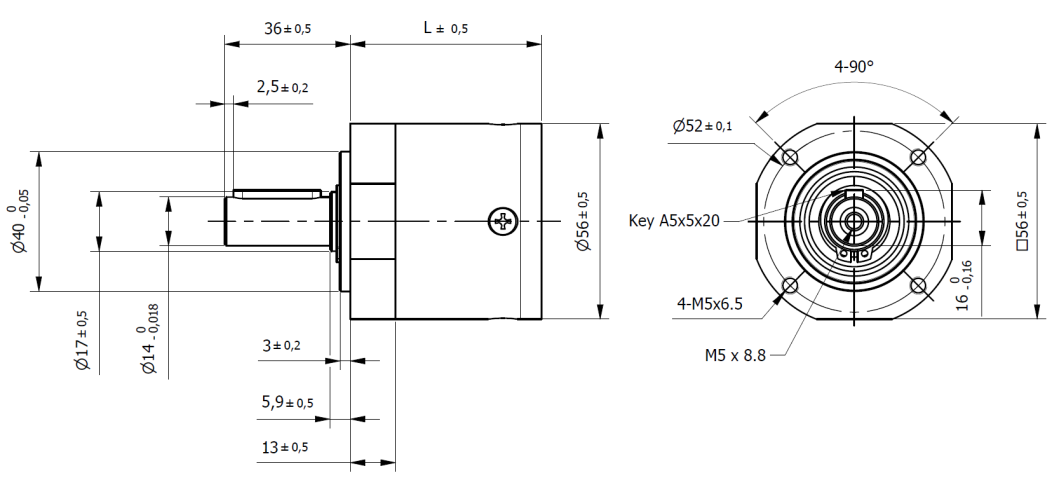

Dimensions

Series	GP	Size	56 mm
Length (L)	86 mm	Stages	3
Reduction Ratio	101.23	Nominal Output Torque	34 Nm
Max. Input Speed	5968 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	68 Nm	Efficiency	78 %
Moment of Inertia	(≤φ8) 6.446 kgmm²	Weight	1100 g
Backlash at 2% nominal output torque	≤0.75 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
