Home Products > Gearboxes > Planetary gearboxes > GP56 -T - Torque

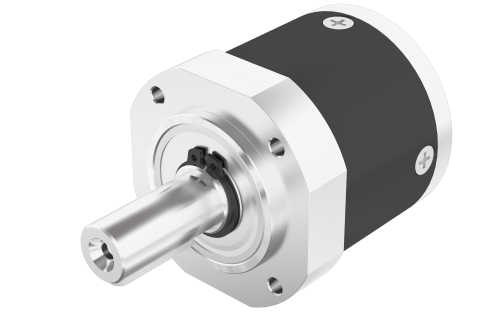

GP56-T2-32.7

Product Code: GP56-T2-32.69.000

Technical Data

Download

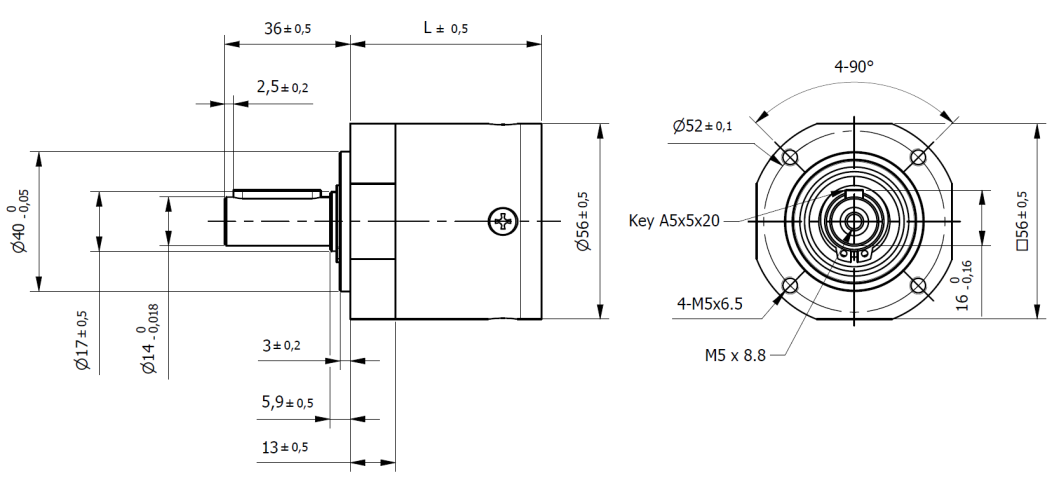

Dimensions

Series	GP	Size	56 mm
Length (L)	72 mm	Stages	2
Reduction Ratio	32.72	Nominal Output Torque	22.24 Nm
Max. Input Speed	10919 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	44.48 Nm	Efficiency	85 %
Moment of Inertia	(≤φ8) 2.19 kgmm²	Weight	800 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
