Home Products > Gearboxes > Planetary gearboxes > GP56 -T - Torque

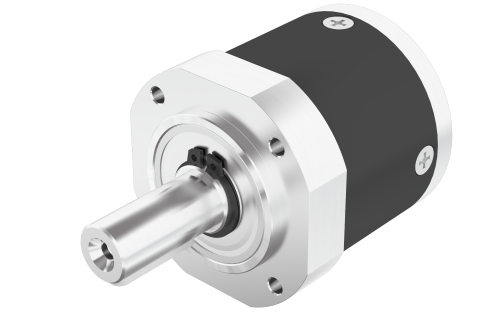

GP56-T1-5.1

Product Code: GP56-T1-5.08.000

Technical Data

Download

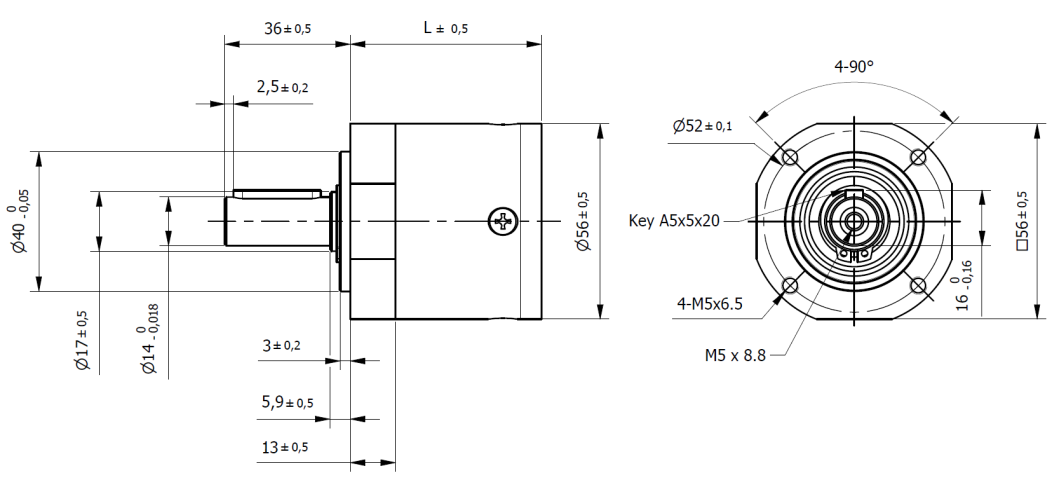

Dimensions

Series	GP	Size	56 mm
Length (L)	54.8 mm	Stages	1
Reduction Ratio	5.09	Nominal Output Torque	15.28 Nm
Max. Input Speed	8307 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	30.56 Nm	Efficiency	92 %
Moment of Inertia	(≤φ8) 3.13 kgmm²	Weight	500 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
