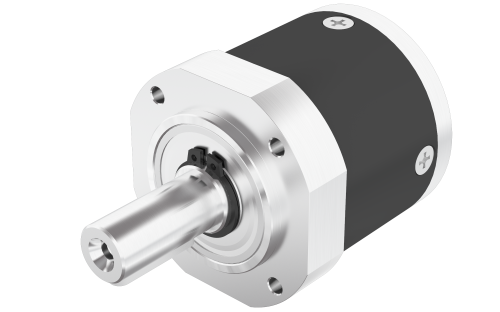

GP56-T1-3.9

Product Code: GP56-T1-3.93.000

Technical Data

Download

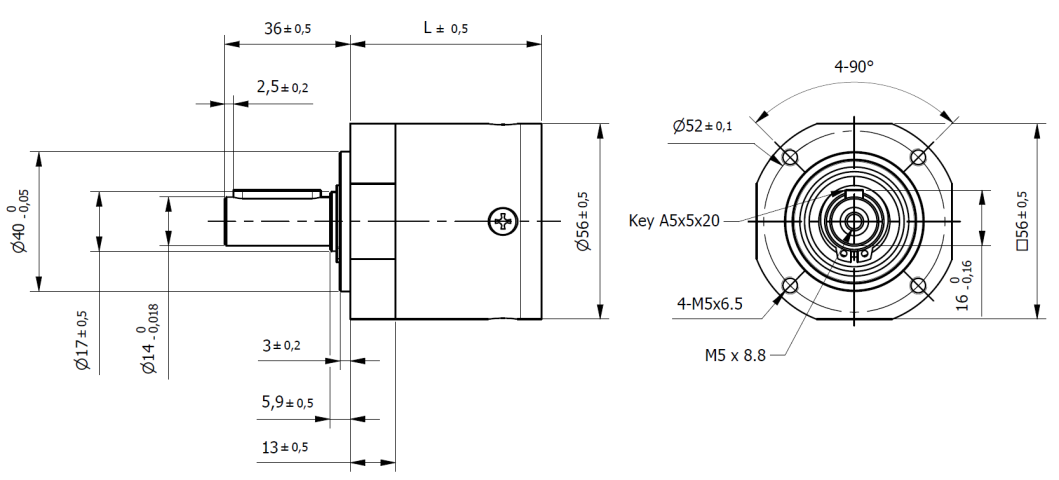

Dimensions

Series	GP	Size	56 mm
Length (L)	54.8 mm	Stages	1
Reduction Ratio	3.94	Nominal Output Torque	14.68 Nm
Max. Input Speed	5968 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	29.36 Nm	Efficiency	92 %
Moment of Inertia	(≤φ8) 5.48 kgmm²	Weight	500 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
