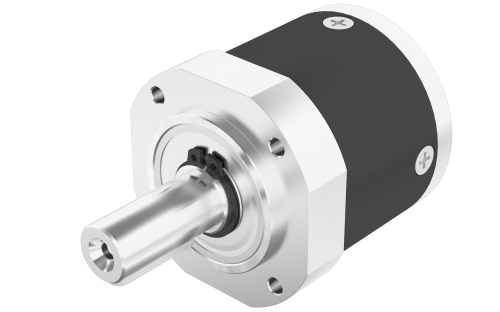

GP56-T1-3.3

Product Code: GP56-T1-3.29.000

Technical Data

Download

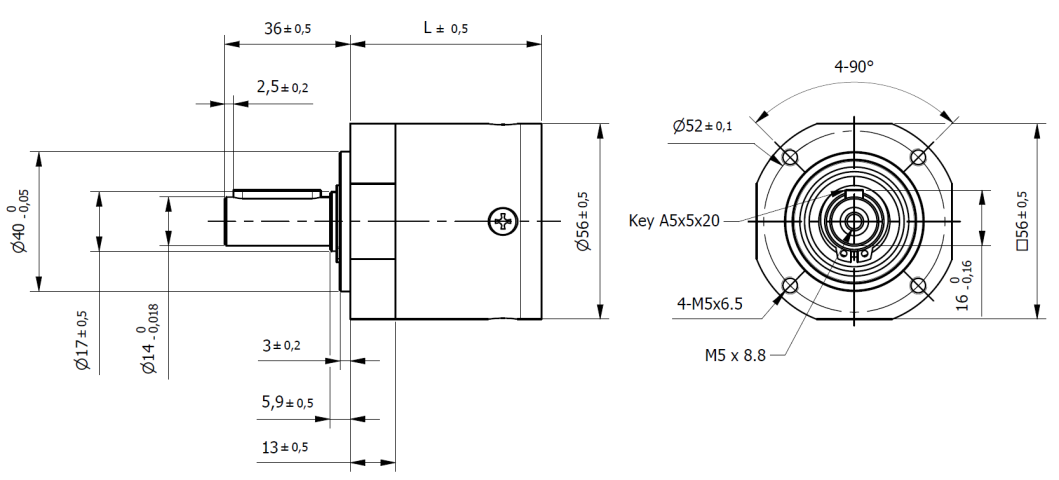

Dimensions

Series	GP	Size	56 mm
Length (L)	54.8 mm	Stages	1
Reduction Ratio	3.29	Nominal Output Torque	14.19 Nm
Max. Input Speed	4658 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	28.38 Nm	Efficiency	92 %
Moment of Inertia	(≤φ8) 15.06 kgmm²	Weight	500 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
