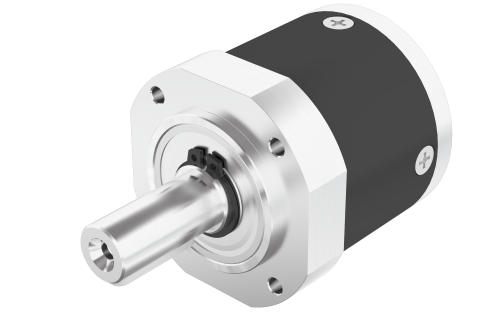

GP56-S2-15.5

Series GP | Size 56 mm | Length (L) 67.8 mm | Reduction Ratio 15.51 | Nominal Output Torque 22.01 Nm | Max. Input Speed 5968 rpm | Recommended Input Speed 3500 rpm

Product Code: GP56-S2-15.51.000

Technical Data

Download

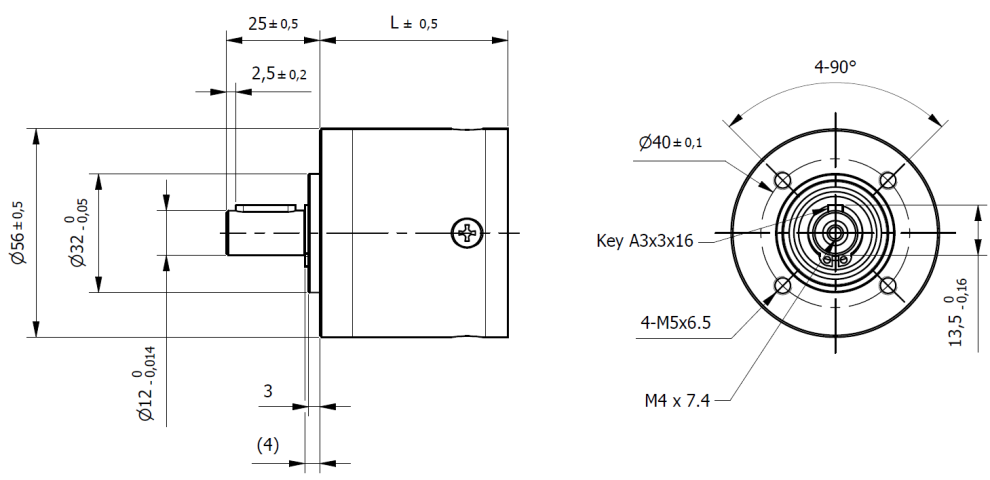

Dimensions

Series	GP	Size	56 mm
Length (L)	67.8 mm	Stages	2
Reduction Ratio	15.51	Nominal Output Torque	22.01 Nm
Max. Input Speed	5968 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	44.02 Nm	Efficiency	85 %
Moment of Inertia	(≤φ8) 5.04 kgmm²	Weight	800 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
