Home Products > Gearboxes > Planetary gearboxes > GP56 -S

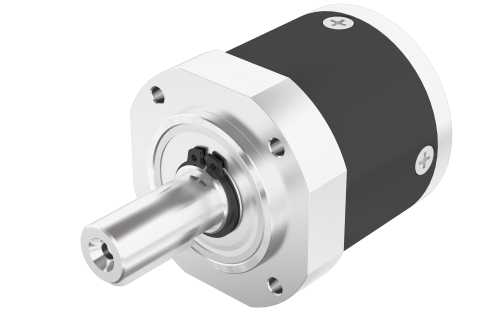

GP56-S2-20

Product Code: GP56-S2-20.03.000

Technical Data

Download

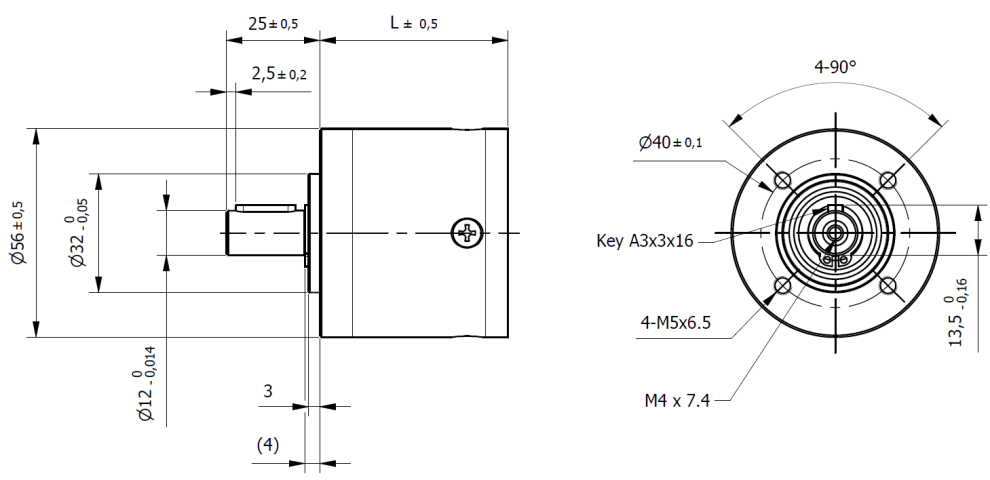

Dimensions

Series	GP	Size	56 mm
Length (L)	67.8 mm	Stages	2
Reduction Ratio	20.03	Nominal Output Torque	23.03 Nm
Max. Input Speed	8307 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	46.06 Nm	Efficiency	85 %
Moment of Inertia	(≤φ8) 3.81 kgmm²	Weight	800 g
Backlash at 2% nominal output torque	≤0.5 °	Press-Fit Max.	500 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
