Home Products > Gearboxes > Planetary gearboxes > GP56 -N - Low noise

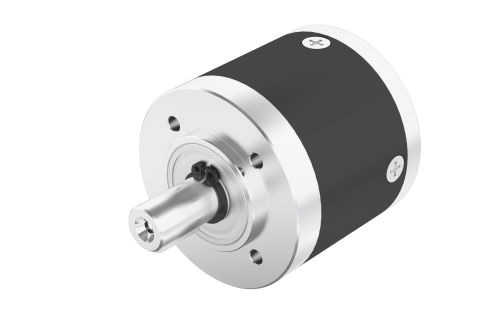

GP56-N2-20.2

Product Code: GP56-N2-20.17.000

Technical Data

Download

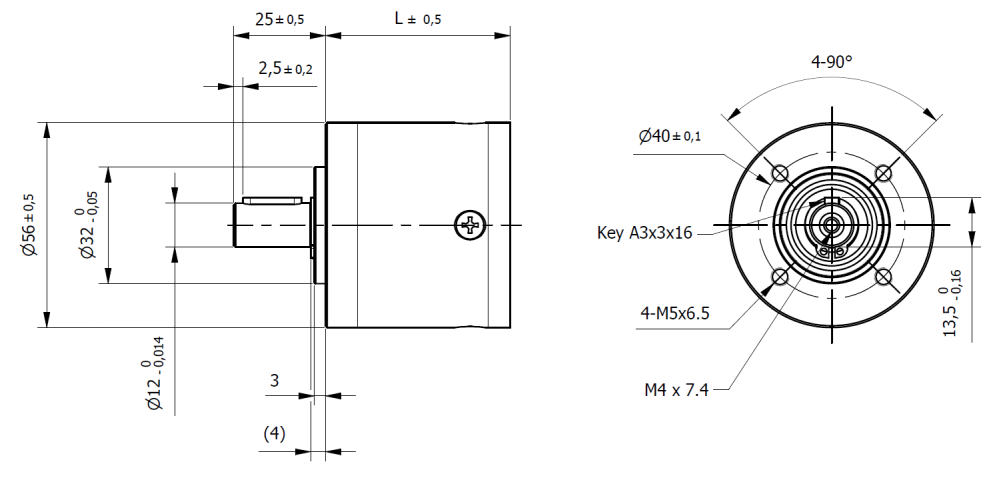

Dimensions

Series	GP	Size	56 mm
Length (L)	73 mm	Stages	2
Reduction Ratio	20.17	Nominal Output Torque	9.2 Nm
Max. Input Speed	6050 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	14.8 Nm	Efficiency	85 %
Moment of Inertia	(≤φ8) 1.97 kgmm²	Weight	400 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	500 N
Noise level	≤50 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
