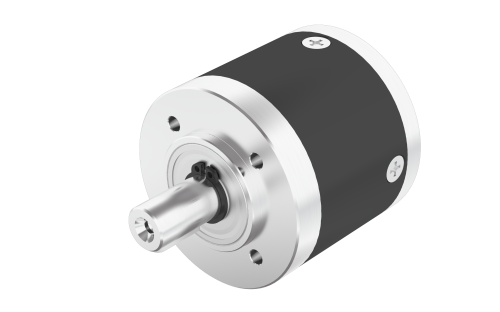

GP56-N2-10.7

Product Code: GP56-N2-10.68.000

Technical Data

Download

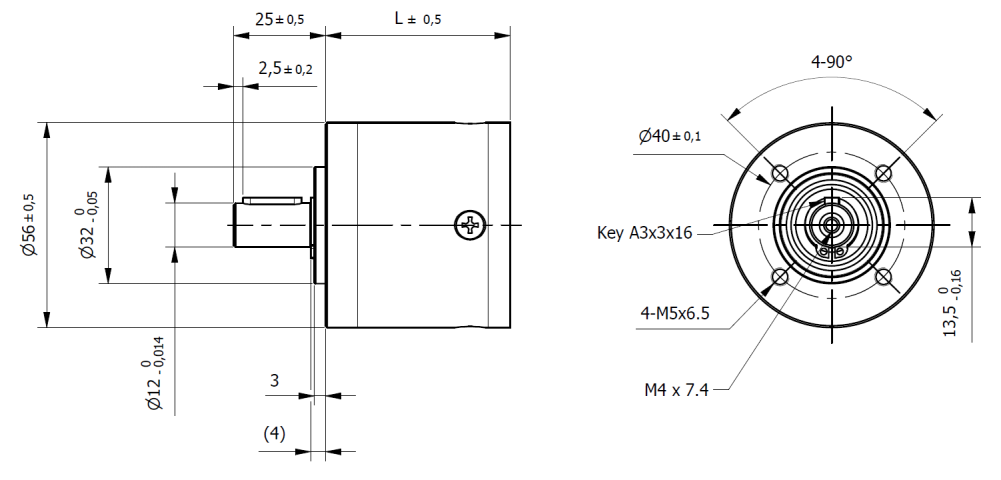

Dimensions

Series	GP	Size	56 mm
Length (L)	73 mm	Stages	2
Reduction Ratio	10.68	Nominal Output Torque	6.4 Nm
Max. Input Speed	4700 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	12.6 Nm	Efficiency	85 %
Moment of Inertia	(≤φ8) 4.2 kgmm²	Weight	400 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	500 N
Noise level	≤50 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
