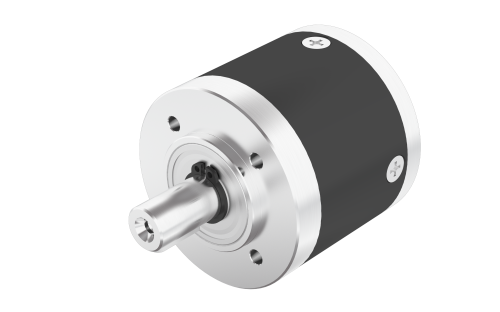

GP56-N1-5.4

Product Code: GP56-N1-5.37.000

Technical Data

Download

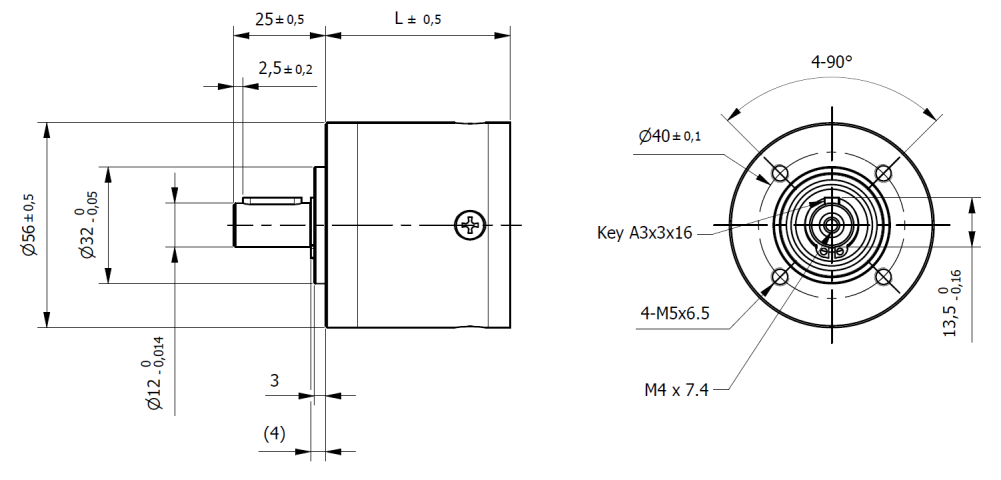

Dimensions

Series	GP	Size	56 mm
Length (L)	56 mm	Stages	1
Reduction Ratio	5.37	Nominal Output Torque	1.7 Nm
Max. Input Speed	8800 rpm	Recommended Input Speed	3500 rpm
Max. Output Torque	5 Nm	Efficiency	92 %
Moment of Inertia	(≤φ8) 0.88 kgmm²	Weight	300 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	500 N
Noise level	≤50 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
