Home Products > Gearboxes > Planetary gearboxes > GP42 -S

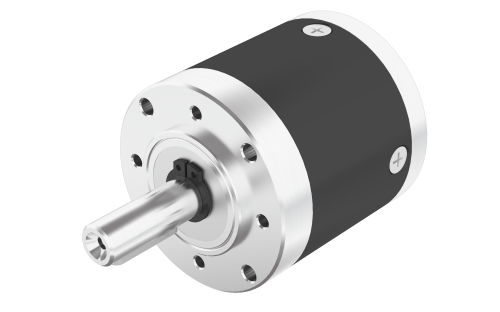

GP42-S2-25.6

Product Code: GP42-S2-25.61.000

Technical Data

Download

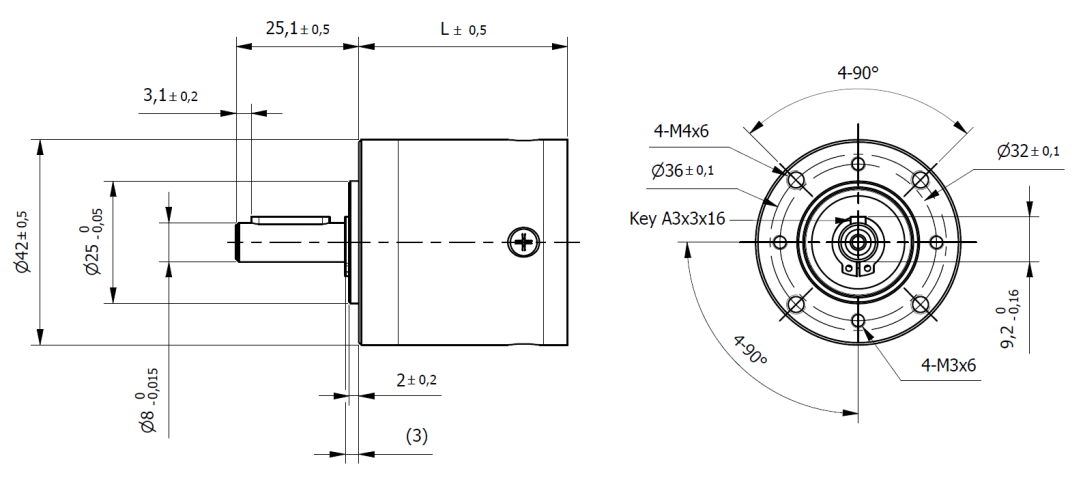

Dimensions

Series	GP	Size	42 mm
Length (L)	56.6 mm	Stages	2
Reduction Ratio	25.62	Nominal Output Torque	8.6 Nm
Max. Input Speed	14050 rpm	Max. Output Torque	17.2 Nm
Recommended Input Speed	3000 rpm	Efficiency	85 %
Moment of Inertia	(≤φ6.35) 0.67 kgmm²	Weight	400 g
Backlash at 2% nominal output torque	≤1 °	Press-Fit Max.	320 N
Noise level	≤55 dB	Operating Temperature	-15°C +90°C
Protection Class	IP54	Bearing output	Ball Bearings
