Home Products > Brushless DC motors > Brushless DC Flat motors with Encoder > 90BLW -E

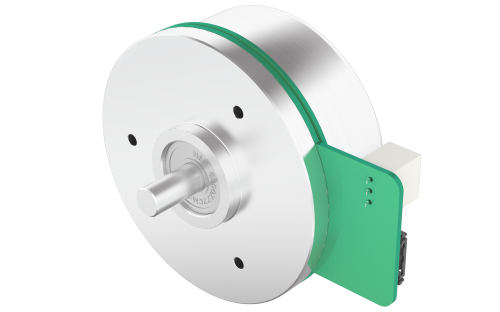

90BLW42-48V-E

Product Code: 90BLW42-48V-E.000

Technical Data

Download

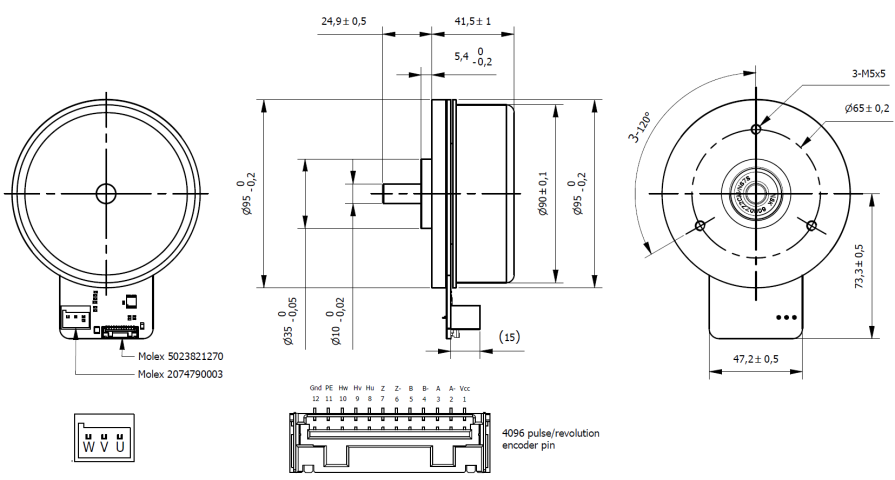

Dimensions

Size	90 mm	Length (L)	41.5 mm
Rated Voltage	48 Vdc	Rated Torque	0.96 Nm
Rated Speed	1670 rpm	n° of Pole	22
n° of Phase	3	Max. Peak Torque	3 Nm
Torque Constant	0.23 Nm/A	Rated Current	4.3 A
Max. Peak Current	13 A	No-Load Current	400 mA
Line to Line Resistance	0.53 Ohm	Line to Line Inductance	0.71 mH
Rotor Inertia	5000 gcm²	Weight	1.2 Kg
Encoder	4096 CPR magnetic incremental/ 3-channels	Hall Effect Angle	120 °
Shaft run out	0.025 mm	Insulation Class	B
Protection Class	IP40	Radial Play (max.4N)	0.02 mm
Axial Play (max.4N)	0.08 mm	Max. Radial Force (10mm from flange)	110 N
Max. Axial Force	45 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
