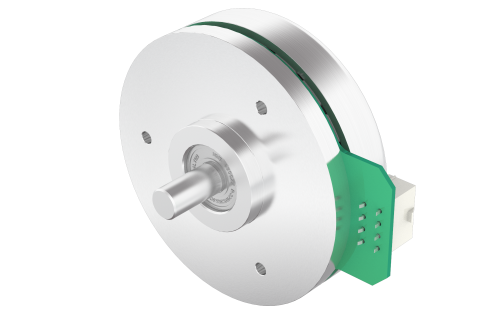

90BLW27-60V

Size 90 mm | Length (L) 27 mm | Rated Voltage 60 Vdc | Rated Torque 0.46 Nm | Rated Speed 2200 rpm

Product Code: 90BLW27-60V.000

Technical Data

Download

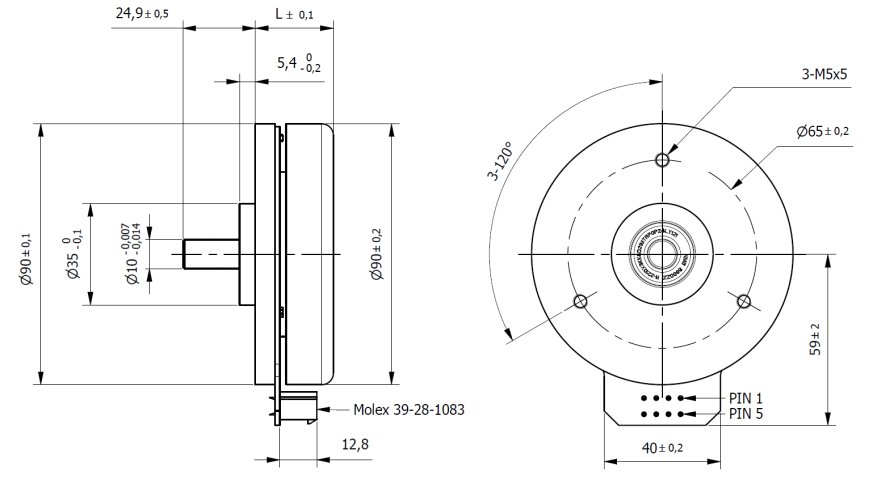

Dimensions

Size	90 mm	Length (L)	27 mm
Rated Voltage	60 Vdc	Rated Torque	0.46 Nm
Rated Speed	2200 rpm	n° of Pole	22
n° of Phase	3	Max. Peak Torque	1.8 Nm
Torque Constant	0.21 Nm/A	Rated Current	2.19 A
Max. Peak Current	7.5 A	No-Load Current	260 mA
Line to Line Resistance	2 Ohm	Line to Line Inductance	1.8 mH
Rotor Inertia	3000 gcm²	Weight	0.6 Kg
Hall Effect Angle	120 °	Shaft run out	0.05 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	110 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
