Home Products > Brushless DC motors > Brushless DC Flat motors > 90BLW

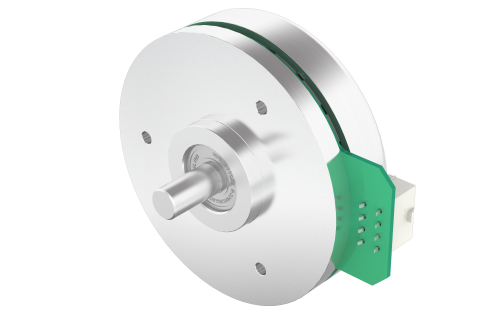

90BLW27-48V

Size 90 mm | Length (L) 27 mm | Rated Voltage 48 Vdc | Rated Torque 0.533 Nm | Rated Speed 1610 rpm

Product Code: 90BLW27-48V.000

Technical Data

Download

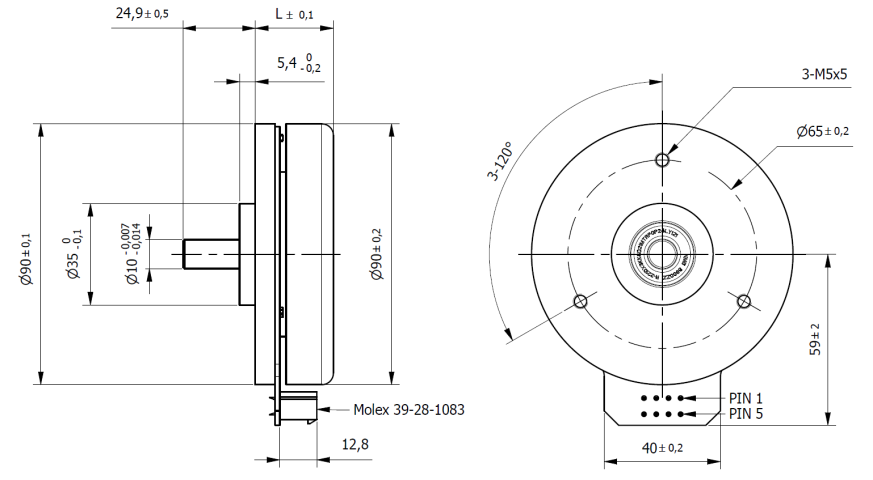

Dimensions

Size	90 mm	Length (L)	27 mm
Rated Voltage	48 Vdc	Rated Torque	0.533 Nm
Rated Speed	1610 rpm	n° of Pole	22
n° of Phase	3	Max. Peak Torque	1.8 Nm
Torque Constant	0.22 Nm/A	Rated Current	2.42 A
Max. Peak Current	7.5 A	No-Load Current	300 mA
Line to Line Resistance	2.1 Ohm	Line to Line Inductance	2 mH
Rotor Inertia	3000 gcm²	Weight	0.6 Kg
Hall Effect Angle	120 °	Shaft run out	0.05 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	110 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
