Home Products > Brushless DC motors > Brushless DC Flat motors > 90BLW

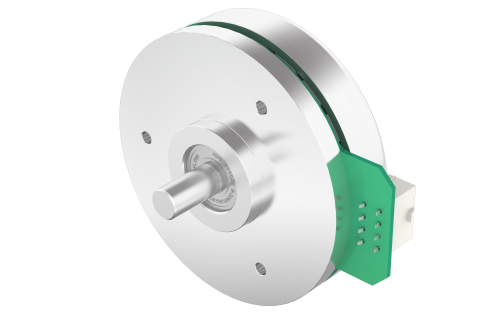

90BLW27-36V

Product Code: 90BLW27-36V.000

Technical Data

Download

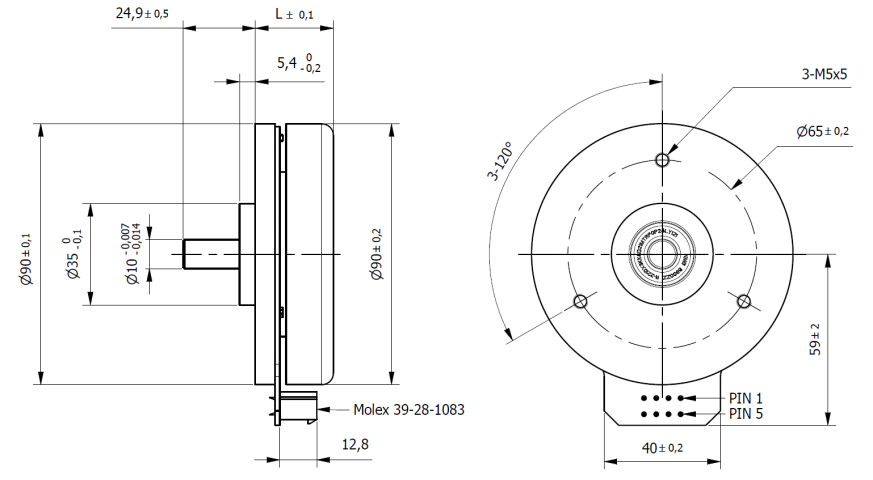

Dimensions

Size	90 mm	Length (L)	27 mm
Rated Voltage	36 Vdc	Rated Torque	0.56 Nm
Rated Speed	2540 rpm	n° of Pole	22
n° of Phase	3	Max. Peak Torque	1.8 Nm
Torque Constant	0.11 Nm/A	Rated Current	5.09 A
Max. Peak Current	14.5 A	No-Load Current	420 mA
Line to Line Resistance	0.5 Ohm	Line to Line Inductance	0.5 mH
Rotor Inertia	3000 gcm²	Weight	0.6 Kg
Hall Effect Angle	120 °	Shaft run out	0.05 mm
Insulation Class	B	Protection Class	IP40
Radial Play (450g load)	0.02 mm	Axial Play (450g load)	0.08 mm
Max. Radial Force (10mm from flange)	110 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
