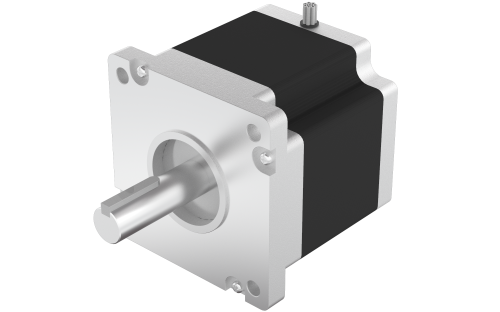

86SH65-4208A

Product Code: 86SH65-4208A.000

Buy online:

Technical Data

Download

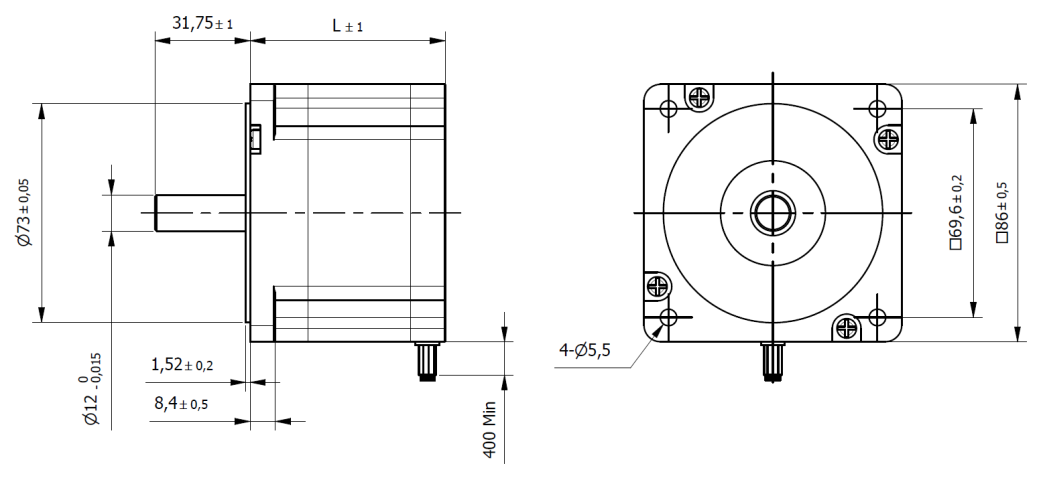

Dimensions

Series	SH	Size	86 mm
Nema	34	Length (L)	65 mm
Current/Phase	5.9 A	Holding Torque	3.4 Nm
Step Angle	1.8 °	Rated Voltage	1.65 Vdc
Resistance/Phase	0.28 Ohm	Inductance/Phase	1.7 mH
Rotor Inertia	1000 gcm²	Detent Torque	0.000 Nm
N° of Leads	8	Weight	1.7 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	220 N
Max. Axial Force	60 N	Dielectric Strength (for 1min.)	750 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
