Size | 86 mm |  |  | Nema | 34 |  |

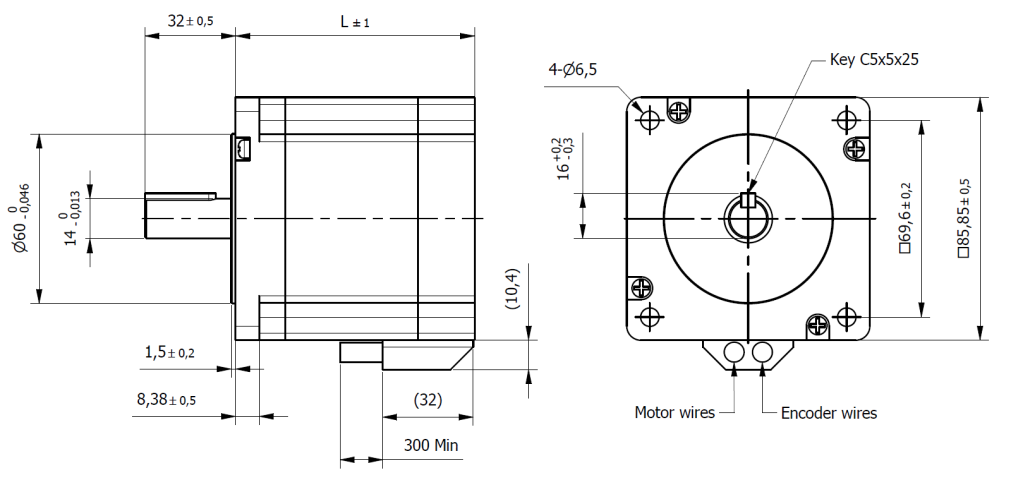

Length (L) | 97 mm |  |  | Current/Phase | 5.5 A |  |
Holding Torque | 4.6 Nm |  |  | Step Angle | 1.8 ° |  |
Rated Voltage | 2.3 Vdc |  |  | Resistance/Phase | 0.42 Ohm |  |
Inductance/Phase | 3.5 mH |  |  | Rotor Inertia | 1400 gcm2 |  |
Detent Torque | 0.12 Nm |  |  | N° of Leads | 4 |  |
Weight | 2.3 Kg |  |  | Encoder | Optical - Incremental 1000 CPR / 2 Channel |  |
Step Angle accuracy | ± 5 % |  |  | Insulation Class | B |  |
Protection Class | IP20 |  |  | Operating Temperature | - 20°C + 50°C |  |
Max. Temp. Rise (rated current, 2-phase on) | 80°C Max °C |  |  | Radial Play (450g load) | 0.02 Max mm |  |
Axial Play (450g load) | 0.08 Max mm |  |  | Max. Radial Force (20mm from flange) | 220 N |  |
Max. Axial Force | 60 N |  |  | Dielectric Strength (for 1min.) | 500 VAC |  |
Insulation Resistance (min.500 VDC) | 100 Mohm |  |  | | |  |
