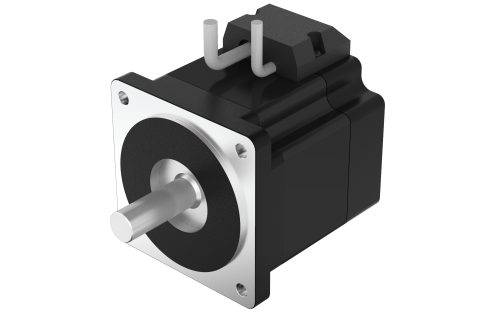

86BLS71

Product Code: 86BLS71.000

Technical Data

Download

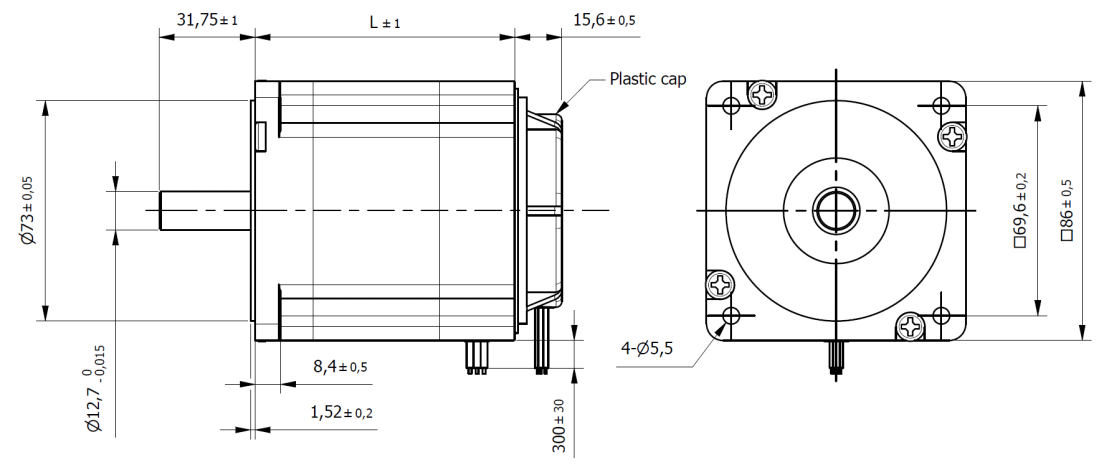

Dimensions

Series	BL	Size	86 mm
Length (L)	71 mm	Weight	2.12 Kg
Rated Voltage	48 Vdc	Rated Torque	0.7 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	2.1 Nm
Torque Constant	0.124 Nm/A	Rated Current	5.65 A
Max. Peak Current	20 A	No-Load Current	800 mA
Line to Line Resistance	0.34 Ohm	Line to Line Inductance	1.00 mH
Rotor Inertia	800 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	220 N
Max. Axial Force	60 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
