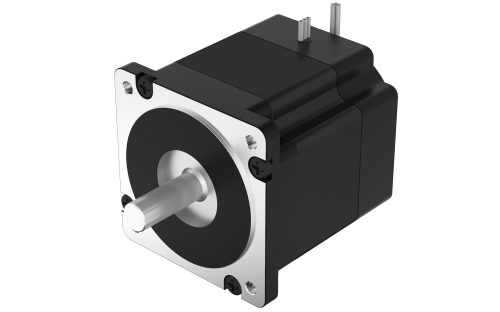

86BLC77

Product Code: 86BLC77.000

Technical Data

Download

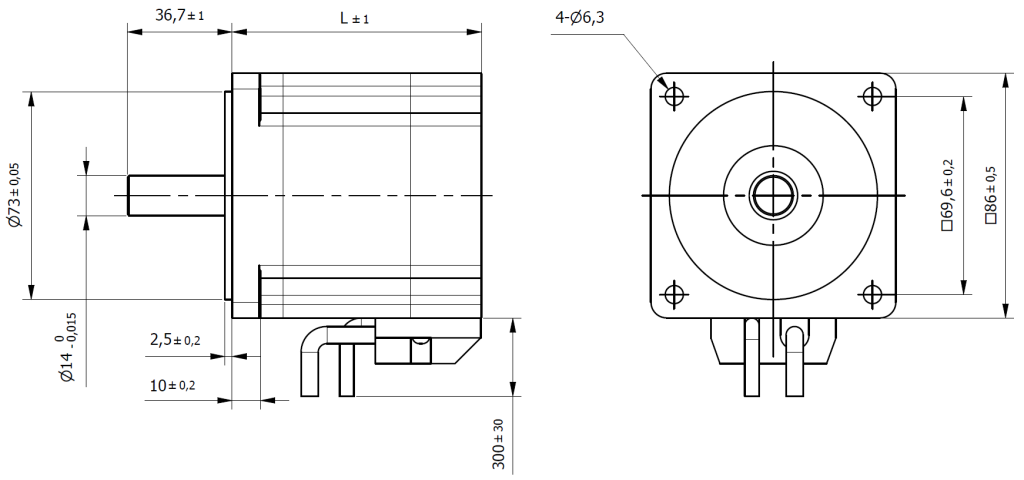

Dimensions

Series	BL	Size	86 mm
Length (L)	77 mm	Weight	1.85 Kg
Rated Voltage	48 Vdc	Rated Torque	0.8 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	2.4 Nm
Torque Constant	0.149 Nm/A	Rated Current	5.37 A
Max. Peak Current	17.5 A	No-Load Current	550 mA
Line to Line Resistance	0.34 Ohm	Line to Line Inductance	0.60 mH
Rotor Inertia	800 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Max. Radial Force (20mm from flange)	220 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
