86BLC64

Series BL | Size 86 mm | Length (L) 64 mm | Rated Voltage 48 Vdc | Rated Torque 0.4 Nm | Rated Speed 3000 rpm

Product Code: 86BLC64.000

Technical Data

Download

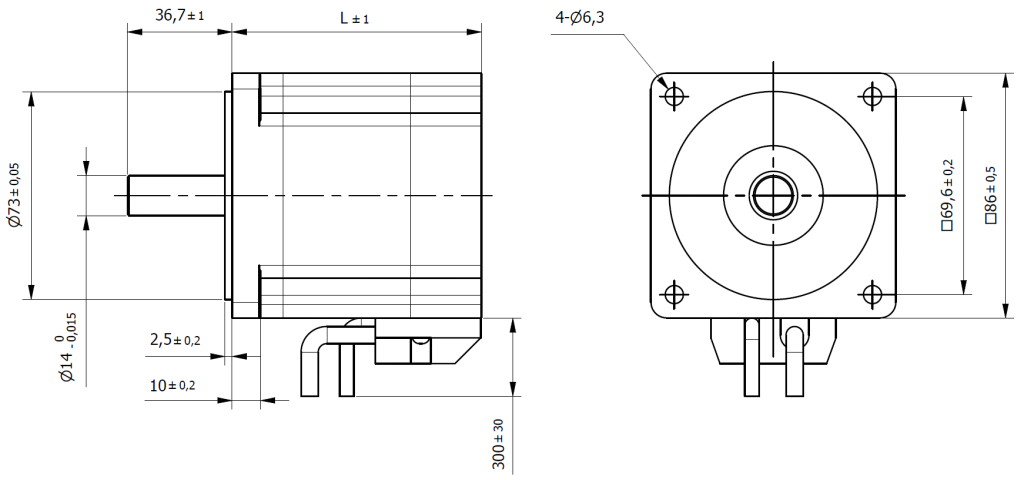

Dimensions

Series	BL	Size	86 mm
Length (L)	64 mm	Weight	1.5 Kg
Rated Voltage	48 Vdc	Rated Torque	0.4 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	1.2 Nm
Torque Constant	0.122 Nm/A	Rated Current	3.28 A
Max. Peak Current	11 A	No-Load Current	380 mA
Line to Line Resistance	1 Ohm	Line to Line Inductance	1.40 mH
Rotor Inertia	400 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Max. Radial Force (20mm from flange)	220 N	Max. Axial Force	45 N
Dielectric Strength (for 1min.)	500 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
