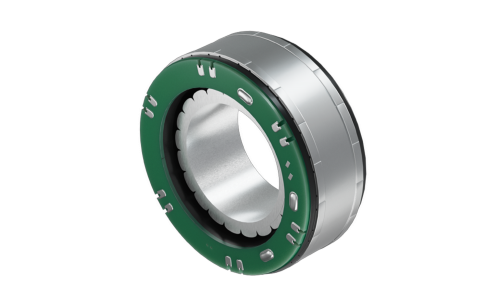

85BLF23-48V

Product Code: 85BLF23-48V.000

Technical Data

Download

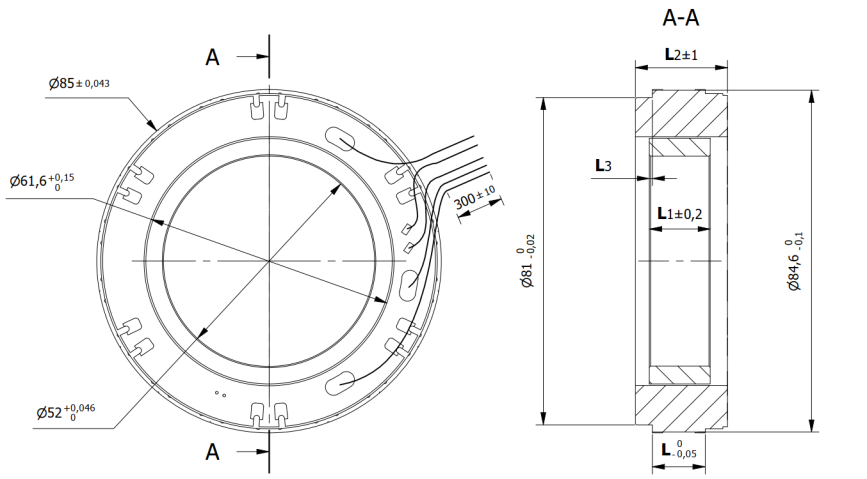

Dimensions

Stator OD	85 mm	Rotor ID	52 mm
Rated Voltage	48 Vdc	Rated Torque	2 Nm
Max. Peak Torque	6 Nm	Rated Speed	3500 rpm
Max. Speed	4000 rpm	n° of Pole	20
n° of Phase	3	Torque Constant	0.13 Nm/A
Rated Current	16.5 A	Max. Peak Current	49.5 A
No-Load Current	1100 mA	Line to Line Resistance	0.09 Ohm
Line to Line Inductance	0.12 mH	Rotor Inertia	1079 gcm²
Back EMF	8.1 Vrms/Krpm	Stator height (L)	23.8 mm
Rotor height (L1)	25 mm	Length (L2)	32.7 mm
Measure (L3)	0.6 mm	Weight	0.554 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	1000 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
