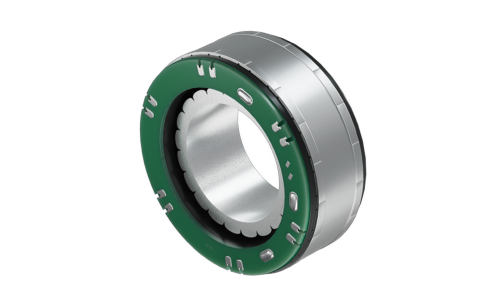

85BLF13-48V

Product Code: 85BLF13-48V.000

Technical Data

Download

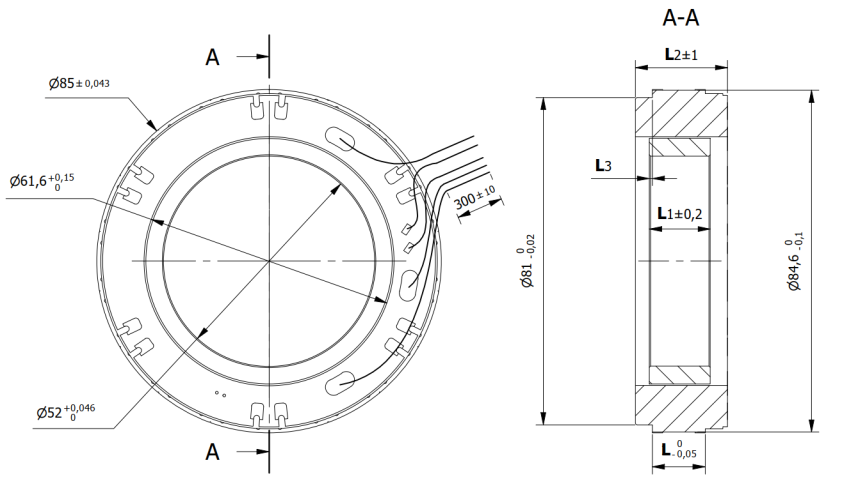

Dimensions

Stator OD	85 mm	Rotor ID	52 mm
Rated Voltage	48 Vdc	Rated Torque	1.2 Nm
Max. Peak Torque	3.6 Nm	Rated Speed	2950 rpm
Max. Speed	3700 rpm	n° of Pole	20
n° of Phase	3	Torque Constant	0.143 Nm/A
Rated Current	9 A	Max. Peak Current	27 A
No-Load Current	600 mA	Line to Line Resistance	0.21 Ohm
Line to Line Inductance	0.30 mH	Rotor Inertia	646 gcm²
Back EMF	8.7 Vrms/Krpm	Stator height (L)	13 mm
Rotor height (L1)	15 mm	Length (L2)	22.7 mm
Measure (L3)	0.7 mm	Weight	0.346 Kg
Hall Effect Angle	120 °	Insulation Class	B
Dielectric strength (for 1 sec.)	1000 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Operating Temperature	-20°C +50°C	Humidity	max. 85% not condensing
