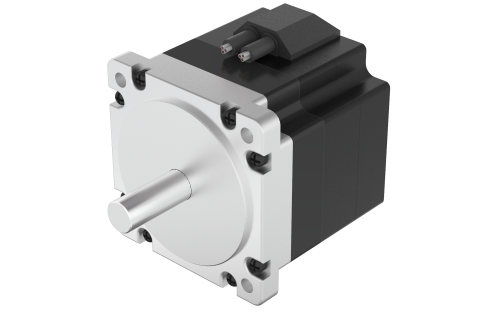

80SVA02

Product Code: 80SVA02

Technical Data

Download

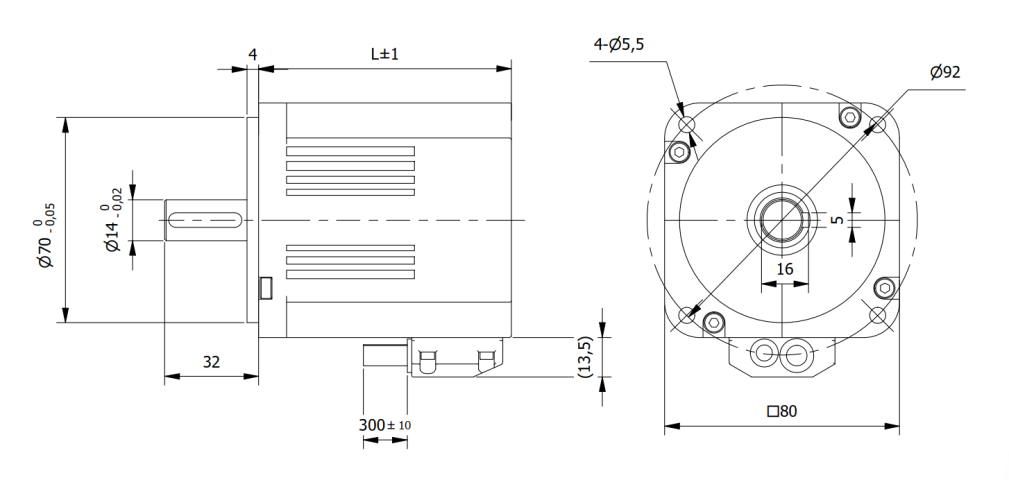

Dimensions

Size	80 mm	Length (L)	107 mm
Rated Voltage	48 Vdc	Rated Torque	1.7 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	5.1 Nm
Torque Constant	0.113 Nm/A	Rated Current	15 A
Max. Peak Current	45 A	No-Load Current	700 mA
Line to Line Resistance	0.11 Ohm	Line to Line Inductance	0.6 mH
Rotor Inertia	1020 gcm²	Weight	2.1 Kg
Encoder	Optical - Incremental 1000 CPR / 2 Channel	Hall Effect Angle	120 °
Insulation Class	B	Protection Class	IP65
Max. Radial Force (10mm from flange)	115 N	Max. Axial Force	45 N
Insulation Resistance (min.500 VDC)	100 Mohm	Dielectric strength (for 1 sec.)	600 VAC
Operating Temperature	-20 to +55 °C
