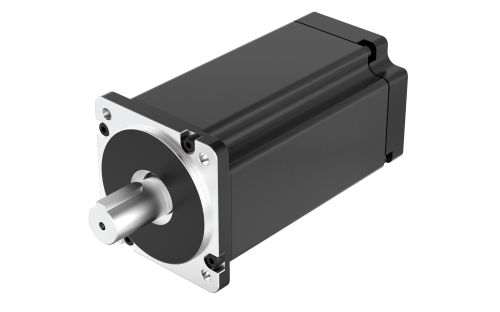

80SV75-48V-30EA2

Product Code: 80SV75-48V-30EA2

Technical Data

Download

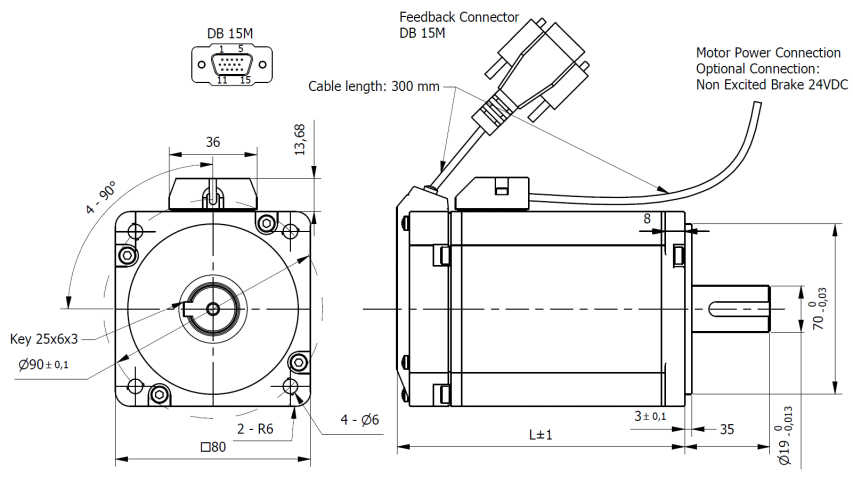

Dimensions

Size	80 mm	Length (L)	155 mm
Nominal Voltage	48 VDC	Rated Torque	2.39 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	750 Watt
No-Load Speed	5000±10% rpm	Max. Peak Torque	7.17 Nm
Torque Constant	0.113 Nm/A	Rated Current	21 A
Max. Peak Current	63 A	No-Load Current	2 A
Back EMF constant	6.8 V/kRPM	Line to Line Resistance	0.064±10% Ohm
Line to Line Inductance	0.2±20% mH	Rotor Inertia	1.68 Kgcm²
Brake	24VDC - 3.2Nm	Weight	3.2 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)	392 N	Max. Axial Force	147 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
