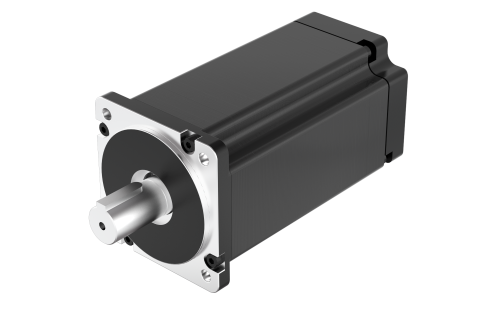

80SV100-220V-30EA2

Product Code: 80SV100-220V-30EA2

Technical Data

Download

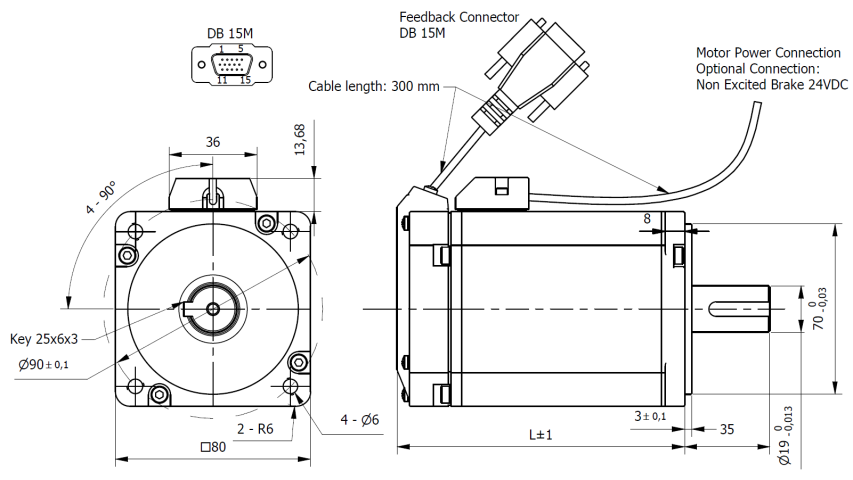

Dimensions

Size	80 mm	Length (L)	165 mm
Nominal Voltage	220 VAC	Rated Torque	3.18 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	1000 Watt
No-Load Speed	6000±10% rpm	Max. Peak Torque	9.54 Nm
Torque Constant	0.6 Nm/A	Rated Current	5.9 A
Max. Peak Current	17.9 A	No-Load Current	0.7 A
Back EMF constant	36 V/kRPM	Line to Line Resistance	0.885±10% Ohm
Line to Line Inductance	3.67±20% mH	Rotor Inertia	2.3 Kgcm²
Brake	24VDC - 3.2Nm	Weight	3.8 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.08mm (max.4N) mm
Max. Radial Force (20mm from flange)	392 N	Max. Axial Force	147 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
