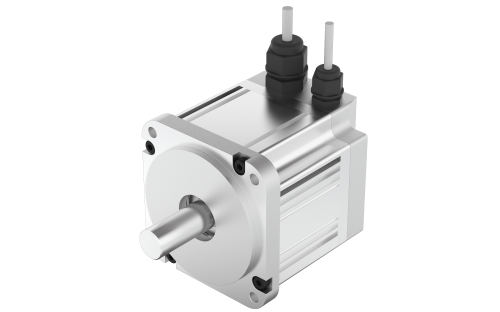

80BLS84

Product Code: 80BLS84

Technical Data

Download

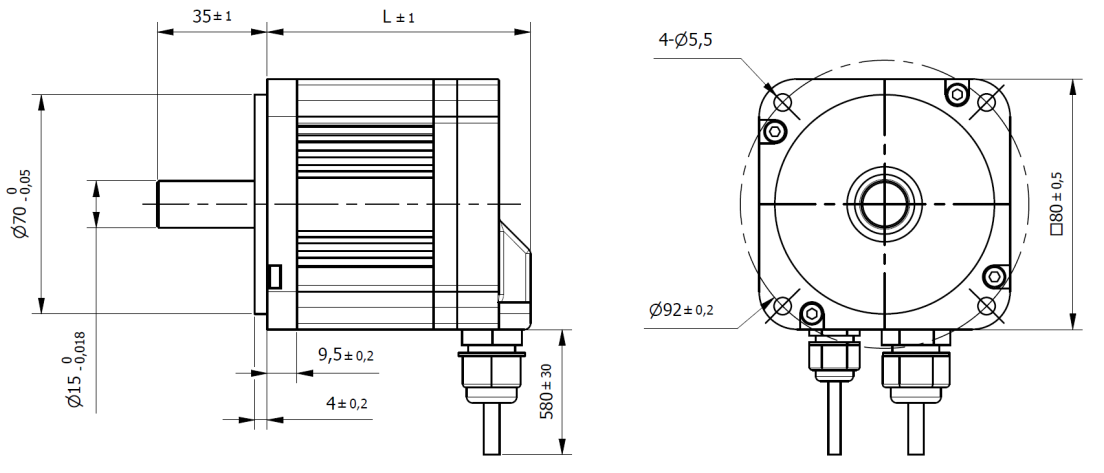

Dimensions

Series	BL	Size	80 mm
Length (L)	84 mm	Weight	1.6 Kg
Rated Voltage	48 Vdc	Rated Torque	0.9 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	2.5 Nm
Torque Constant	0.118 Nm/A	Rated Current	7.63 A
Max. Peak Current	22 A	No-Load Current	500 mA
Line to Line Resistance	0.25 Ohm	Line to Line Inductance	1.3 mH
Rotor Inertia	544 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	F
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
