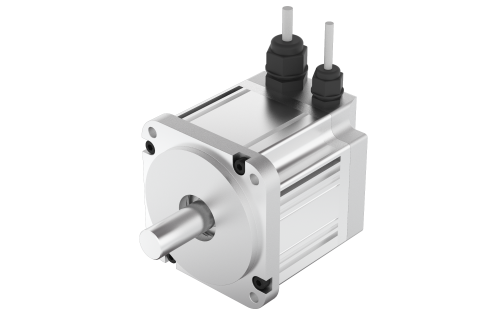

80BLS120

Product Code: 80BLS120.000

Technical Data

Download

Series	BL	Size	80 mm
Length (L)	120 mm	Weight	2.5 Kg
Rated Voltage	48 Vdc	Rated Torque	2.2 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	6.5 Nm
Torque Constant	0.109 Nm/A	Rated Current	20.18 A
Max. Peak Current	61 A	No-Load Current	1000 mA
Line to Line Resistance	0.07 Ohm	Line to Line Inductance	0.4 mH
Rotor Inertia	1360 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	F
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
