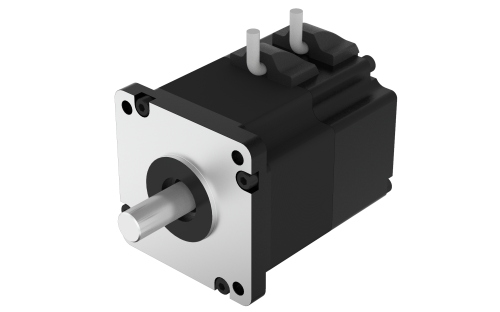

70BLS86

Product Code: 70BLS86.000

Technical Data

Download

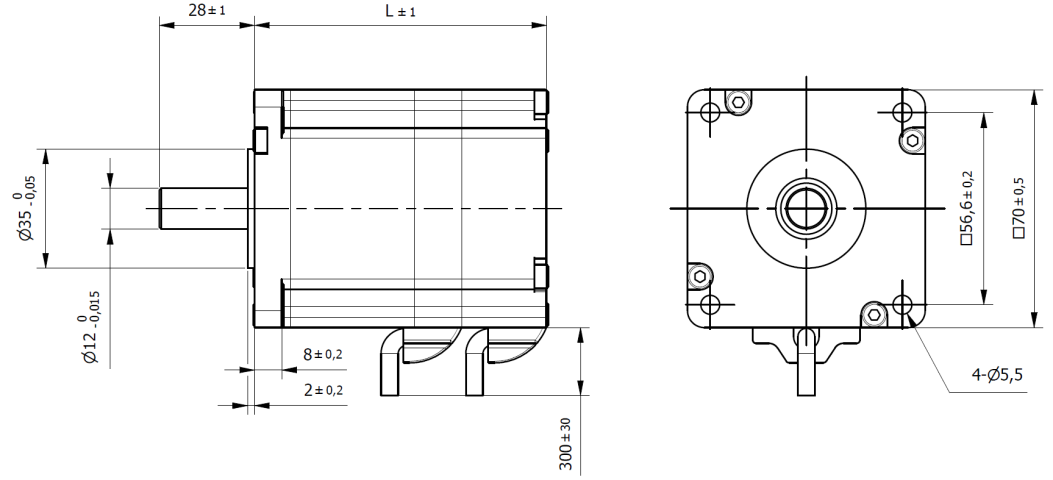

Dimensions

Series	BL	Size	70 mm
Length (L)	86 mm	Weight	1.3 Kg
Rated Voltage	48 Vdc	Rated Torque	0.5 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	1.5 Nm
Torque Constant	0.12 Nm/A	Rated Current	4.17 A
Max. Peak Current	13 A	No-Load Current	600 mA
Line to Line Resistance	0.60 Ohm	Line to Line Inductance	1.40 mH
Rotor Inertia	200 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
