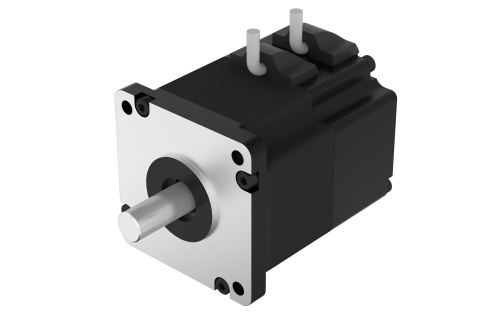

70BLS116

Product Code: 70BLS116.000

Technical Data

Download

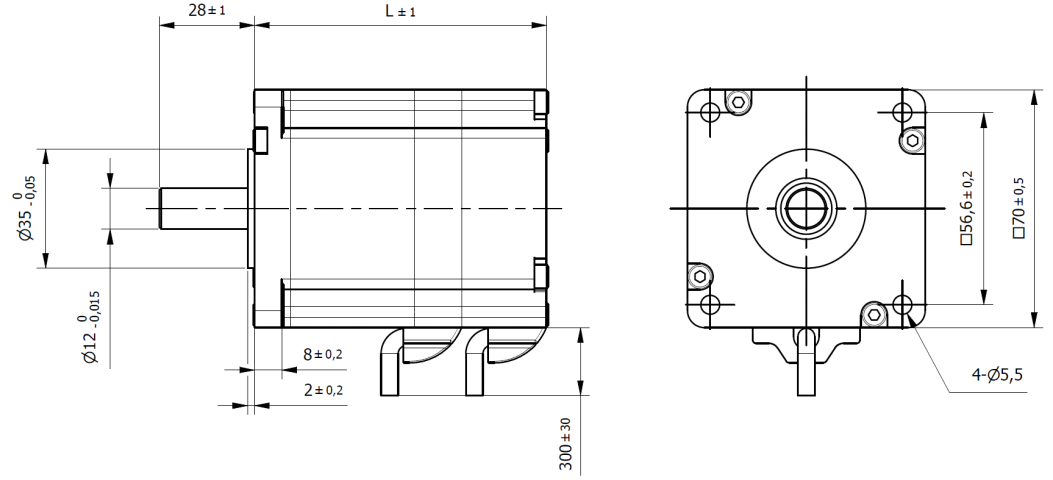

Dimensions

Series	BL	Size	70 mm
Length (L)	116 mm	Weight	2.1 Kg
Rated Voltage	48 Vdc	Rated Torque	1 Nm
Rated Speed	3000 rpm	n° of Pole	8
n° of Phase	3	Max. Peak Torque	3 Nm
Torque Constant	0.12 Nm/A	Rated Current	8.33 A
Max. Peak Current	26 A	No-Load Current	600 mA
Line to Line Resistance	0.30 Ohm	Line to Line Inductance	0.70 mH
Rotor Inertia	400 gcm²	Hall Effect Angle	120 °
Shaft run out	0.05 mm	Insulation Class	B
Protection Class	IP40	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	115 N
Max. Axial Force	45 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
