Home Products > Stepper motors > Flat Hybrid Stepper motors > 63S10

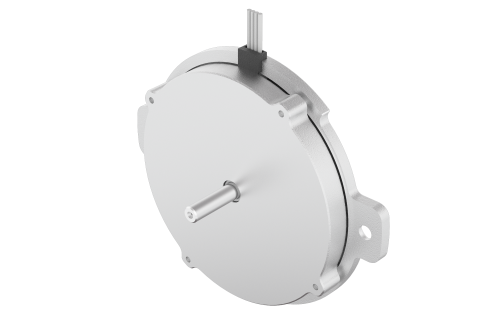

63S10-1004A

Product Code: 63S10-1004A.000

Buy online:

Technical Data

Download

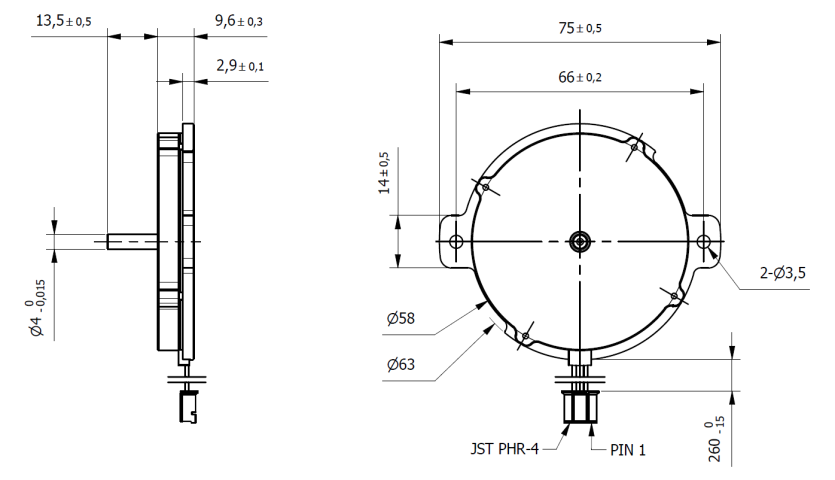

Dimensions

Size	63 mm	Length (L)	9.6 mm
Current/Phase	1 A	Holding Torque	0.064 Nm
Step Angle	1.8 °	Rated Voltage	3.8 Vdc
Resistance/Phase	3.8 Ohm	Inductance/Phase	2 mH
Rotor Inertia	16 gcm²	N° of Leads	4
Weight	0.095 Kg	Step Angle accuracy	±5 %
Insulation Class	B	Protection Class	IP30
Operating Temperature	-20°C +50°C	Max. Temp. Rise (rated current, 2-phase on)	80 °C
Radial Play (450g load)	0.06 mm	Axial Play (450g load)	0.05 mm
Max. Radial Force (5mm from flange)	5 N	Max. Axial Force	2 N
Dielectric Strength (for 1min.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
