Home Products > Servomotors > Low voltage servomotors > 60SV-48VDC

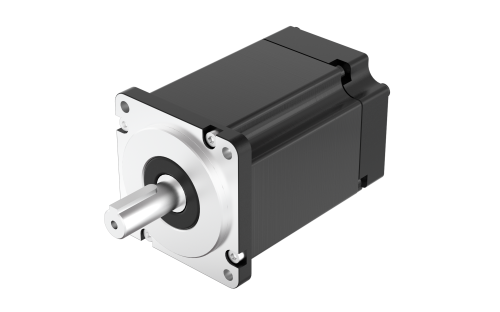

60SV40-48V-30EA1

Product Code: 60SV40-48V-30EA1

Technical Data

Download

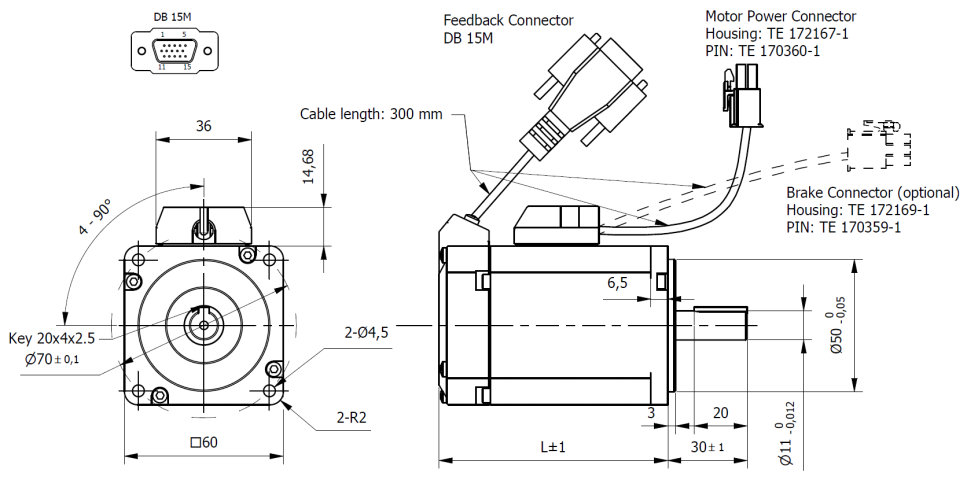

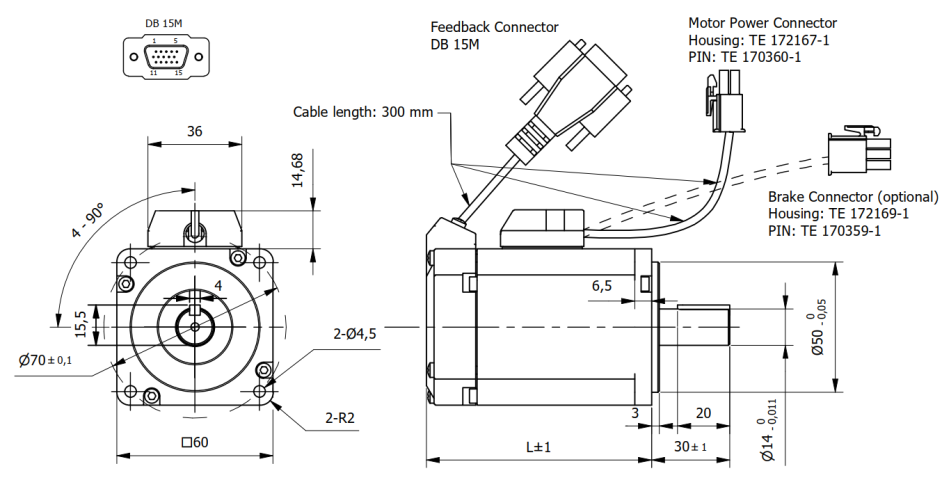

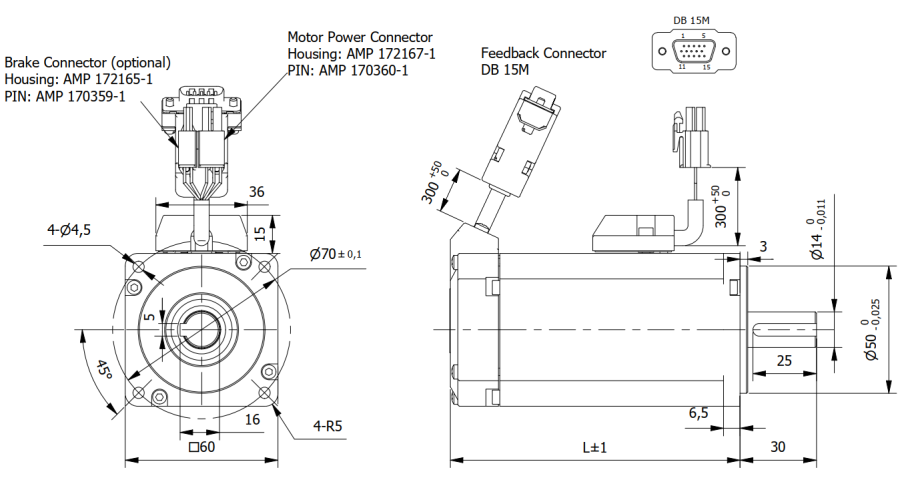

Dimensions

Size	60 mm	Length (L)	106 mm
Nominal Voltage	48 VDC	Rated Torque	1.27 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	400 Watt
No-Load Speed	5200±10% rpm	Max. Peak Torque	3.81 Nm
Torque Constant	0.107 Nm/A	Rated Current	12 A
Max. Peak Current	36 A	No-Load Current	<1 A
Back EMF constant	6.5 V/kRPM	Line to Line Resistance	0.23±10% Ohm
Line to Line Inductance	0.3±20% mH	Rotor Inertia	0.25 Kgcm²
Weight	1.35 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.14mm (max.4N) mm	Max. Radial Force (20mm from flange)	245 N
Max. Axial Force	98 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
