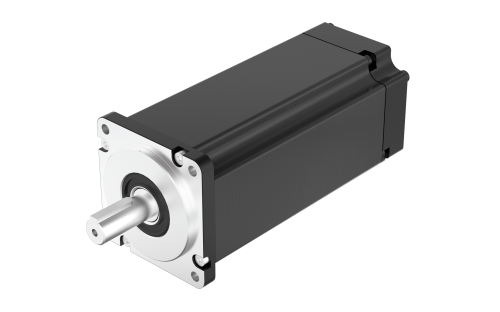

60SV40-220V-30EA2

Product Code: 60SV40-220V-30EA2

Technical Data

Download

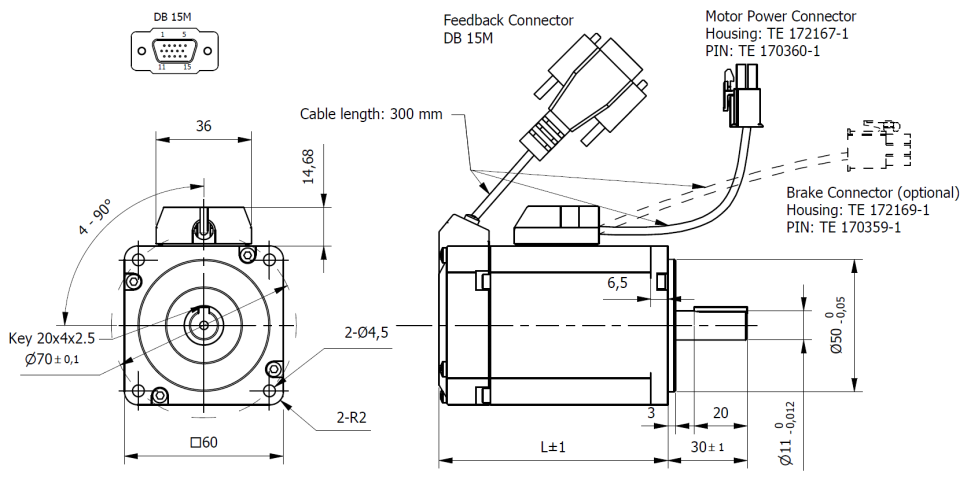

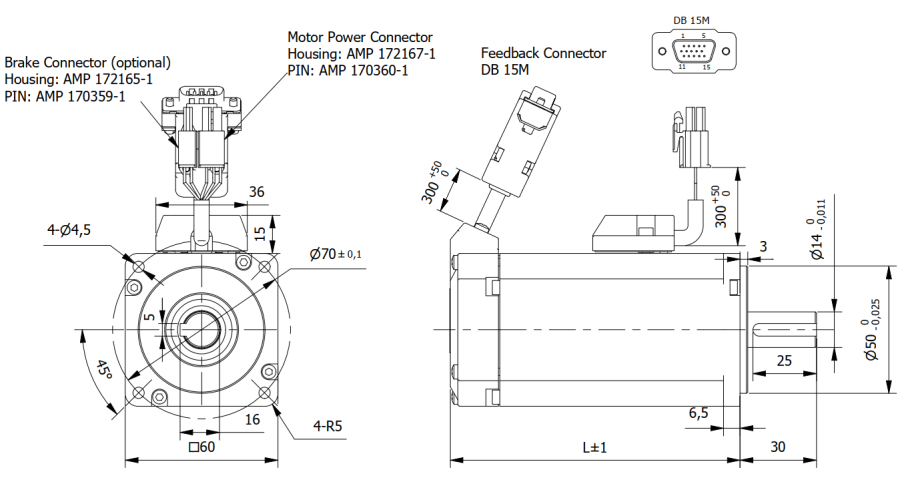

Dimensions

Size	60 mm	Length (L)	135.5 mm
Nominal Voltage	220 VAC	Rated Torque	1.27 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	400 Watt
No-Load Speed	6900±10% rpm	Max. Peak Torque	3.81 Nm
Torque Constant	0.53 Nm/A	Rated Current	2.4 A
Max. Peak Current	7.2 A	No-Load Current	0.3 A
Back EMF constant	32 V/kRPM	Line to Line Resistance	3.46±10% Ohm
Line to Line Inductance	7.14±20% mH	Rotor Inertia	0.25 Kgcm²
Brake	24VDC - 1.5Nm	Weight	1.8 Kg
Protection Class	IP65	Insulation Class	F 155°C
Radial Play	0.02mm (max.4N)	Axial Play	0.14mm (max.4N) mm
Max. Radial Force (20mm from flange)	245 N	Max. Axial Force	98 N
Dielectric strength (for 1 sec.)	600 VAC	Insulation Resistance (min.500 VDC)	100 Mohm
Encoder Type - Standard	Optical incremental 2500CPR	Encoder Type - Optional	on demand
