60SV40-220V-30EA2

60SV40-220V-30EA2

Size 60 mm  |  Length (L) 135.5 mm  |  Nominal Voltage 220 VAC   |  Rated Torque 1.27 Nm  |  Rated Speed 3000 rpm  |  Brake 24VDC - 1.5Nm

Product Code: 60SV40-220V-30EA2

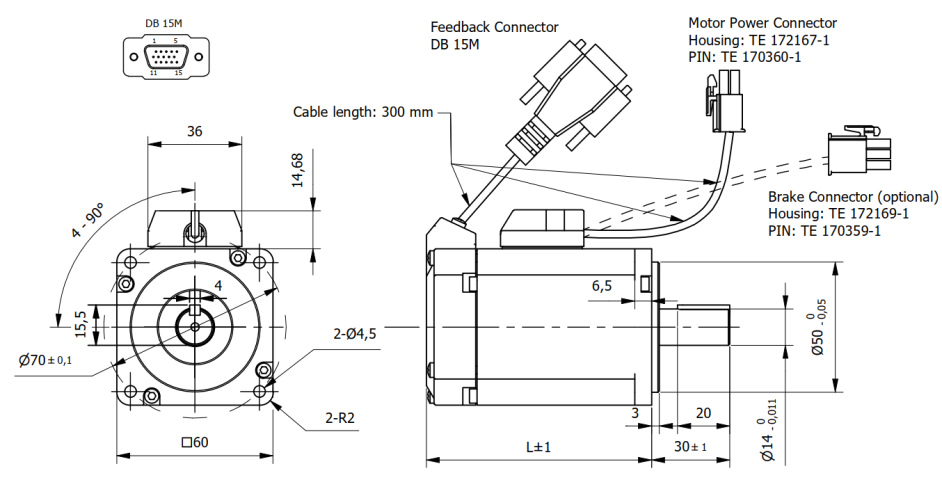

Technical Data Download Dimensions
Size60 mmLength (L)135.5 mm
Nominal Voltage220 VAC Rated Torque1.27 Nm
Rated Speed3000 rpmn° of Pole10
n° of Phase3 Rated Power400 Watt
No-Load Speed6900±10% rpmMax. Peak Torque3.81 Nm
Torque Constant0.53 Nm/ARated Current2.4 A
Max. Peak Current7.2 ANo-Load Current0.3 A
Back EMF constant32 V/kRPMLine to Line Resistance3.46±10% Ohm
Line to Line Inductance7.14±20% mHRotor Inertia0.25 Kgcm2
Brake24VDC - 1.5Nm Weight1.8 Kg
Protection ClassIP65 Insulation ClassF 155°C
Radial Play0.02mm (max.4N) Axial Play0.14mm (max.4N) mm
Max. Radial Force (20mm from flange)245 NMax. Axial Force98 N
Dielectric strength (for 1 sec.)600 VACInsulation Resistance (min.500 VDC)100 Mohm
Encoder Type - StandardOptical incremental 2500CPR Encoder Type - Optionalon demand
