60SV20-220V-30EA1

Size 60 mm | Length (L) 79.5 mm | Nominal Voltage 220 VAC | Rated Torque 0.64 Nm | Rated Speed 3000 rpm

Product Code: 60SV20-220V-30EA1

Technical Data

Download

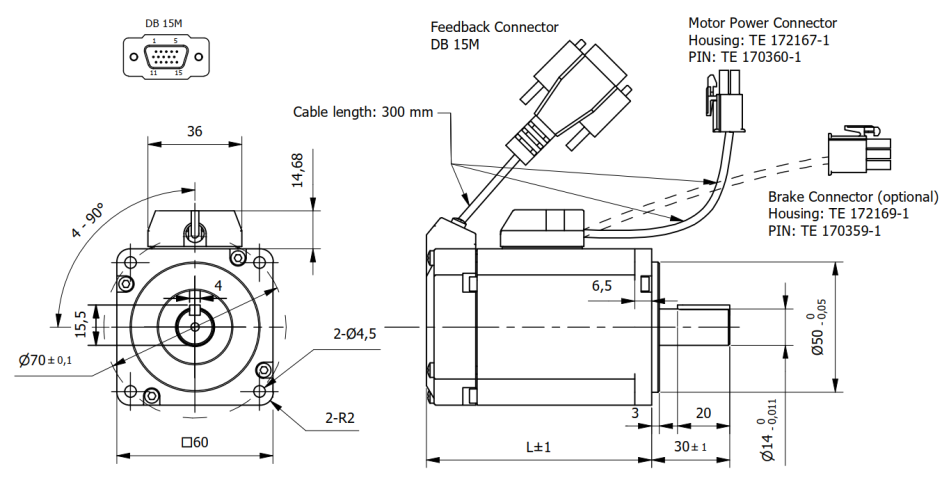

Dimensions

Size	60 mm	Length (L)	79.5 mm
Nominal Voltage	220 VAC	Rated Torque	0.64 Nm
Rated Speed	3000 rpm	n° of Pole	10
n° of Phase	3	Rated Power	200 Watt
No-Load Speed	6400±10% rpm	Max. Peak Torque	1.92 Nm
Torque Constant	0.53 Nm/A	Rated Current	1 A
Max. Peak Current	3.6 A	No-Load Current	0.6 A
Back EMF constant	32 V/kRPM	Line to Line Resistance	9.35±10% Ohm
Line to Line Inductance	17±20% mH	Rotor Inertia	0.15 Kgcm²
Weight	0.9 Kg	Protection Class	IP65
Insulation Class	F 155°C	Radial Play	0.02mm (max.4N)
Axial Play	0.14mm (max.4N) mm	Max. Radial Force (20mm from flange)	245 N
Max. Axial Force	98 N	Dielectric strength (for 1 sec.)	600 VAC
Insulation Resistance (min.500 VDC)	100 Mohm	Encoder Type - Standard	Optical incremental 2500CPR
Encoder Type - Optional	on demand
