Home Products > Stepper motors > Hybrid Stepper motors > 60SH

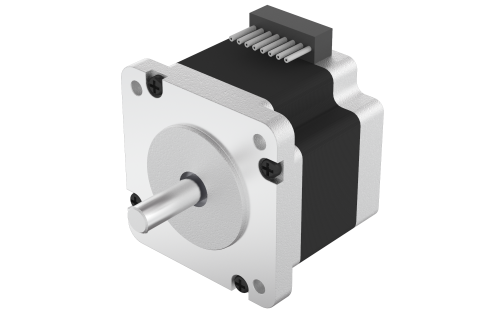

60SH56-2008AF

Series SH | Size 60 mm | Nema 24 | Length (L) 56 mm | Current/Phase 2.8 A | Holding Torque 1.65 Nm | Step Angle 1.8 °

Product Code: 60SH56-2008AF.000

Technical Data

Download

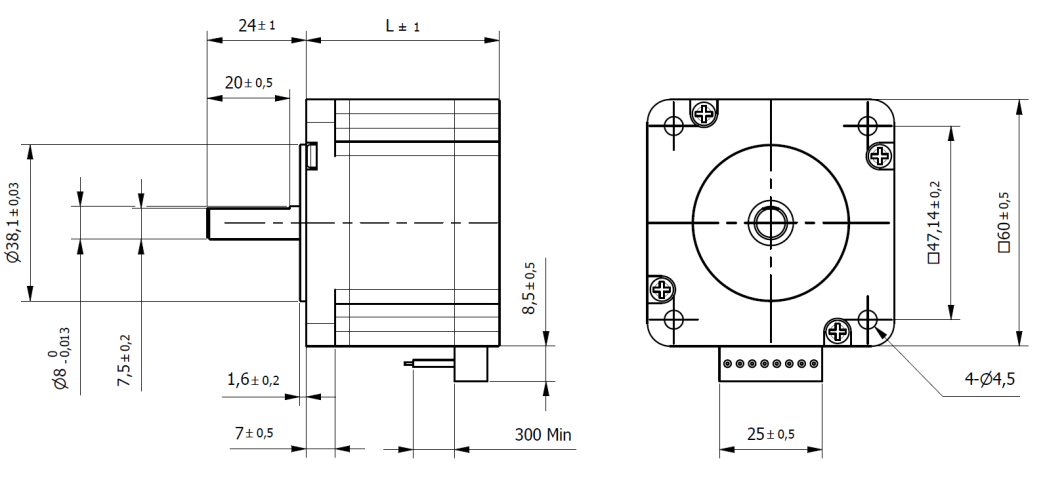

Dimensions

Series	SH	Size	60 mm
Nema	24	Length (L)	56 mm
Current/Phase	2.8 A	Holding Torque	1.65 Nm
Step Angle	1.8 °	Rated Voltage	2.52 Vdc
Resistance/Phase	0.9 Ohm	Inductance/Phase	3.6 mH
Rotor Inertia	400 gcm²	Detent Torque	0.069 Nm
N° of Leads	8	Weight	0.77 Kg
Step Angle accuracy	±5 %	Insulation Class	B
Protection Class	IP30	Operating Temperature	-20°C +50°C
Max. Temp. Rise (rated current, 2-phase on)	80 °C	Radial Play (450g load)	0.02 mm
Axial Play (450g load)	0.08 mm	Max. Radial Force (20mm from flange)	75 N
Max. Axial Force	15 N	Dielectric Strength (for 1min.)	500 VAC
Insulation Resistance (min.500 VDC)	100 Mohm
